Baluns

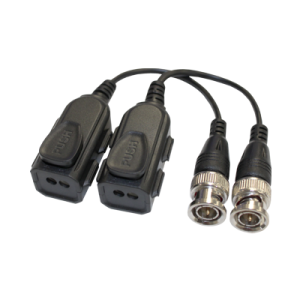

The video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video, power and data signal via cost-effective Unshielded Twisted Paired (UTP) cable for application of POC camera and POC DVR. This is also compatible with all HD-TVI, HD-CVI, AHD cameras up to 4K and CVBS analog cameras. Male BNC allows connection directly to the camera and DVR. Push-pin terminal block allows tool-less connection of UTP cable output. Used in pairs, eliminates costly and bulky coaxial cable. The superior interference rejection and low emissions allow video signals to coexist in the same wire bundle as telephone, datacom. This allows the use of a shared or existing cable plant. There is built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals. • Real-time transmission over UTP cat5e/6 • Compatible with all HD-TVI/CVI/AHD/CVBS and POC analog camera • Low crosstalk and noise suppression • Male BNC connector • Built-in solid state TVS (Transient Voltage Suppressor) for surge protection • Wave Filter Design, Anti-Static Design • Power and video signals transmit over one twist pair cable • Lightning protection design Grade: â…¢ • 60 dB crosstalk and noise immunity • Exceptional interference rejection • ABS engineering plastic housing • Balun Learn More

Learn More

Transmission distance: HDCVI 720P: 400m /1080P: 250m/4MP:200m HDTVI 720P/1080P: 250m; 5MP:200m; 4K/8MP:150m AHD 720P: 350m/1080P: 200m/5MP:200m Key Features: • Power transmission up to 100m • lt support power supply on 12V DC or 24V AC • Built-in surge&transient protection • Super interference rejection • LED indicate whether working (green light) or not working (yellow light) Learn More

FS-EOC7001 is a kind of Ethernet signal extender over coax cable, which adopts specific technology for media conversion, complies with IEEE802.3, 10BASE-T and 100BASE-T Protocol Standards. The device can transmit Ethernet signal 200 meters over coax cable without extra power provided. Built-in TVS for surge protection help FS-EOC7001 can protect interior equipment when encounter badly thunderstorms from. As for the application area, FS-EOC7001 can be widely used for network monitoring project, upgrading from coaxial analog monitoring system to network HD monitoring system, and all the field of transmitting Ethernet signal over coax cable. • 1-CH IP extender over coax cable • Transmit Ethernet signal over coax cable • Transmission distance max up to 200m • Access Control Method and Physical Layer Specification Comply with IEEE802.3, 10BASE-T and 100BASE-T • Passive device, no power required • Real-time transmission • Built-in TVS for surge protection • Compact size, easy to install • ABS engineering housing Learn More

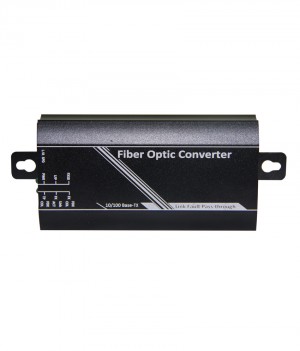

FS-MC01E-SE is auto negotiation of 10/100Mbps Ethernet optic fiber converter. It can convert 100Base-FX fiber to 10/100Base-TX copper media, or vice versa. FS-MC01E-SE can achieve long-distance, high speed rate and high bandwidth for the fast Ethernet workgroup users. It supports Link Fault Pass-through and it minimizes the loss caused by link failure timely, conveniently for maintaining; With various LED display functions, it can display the working conditions in the same time to make the working status much clear for end users. • Comply with IEEE802.3u , 10/100Base-TX and 100Base-FX standards. • Support LFP (Link Fault Pass-through) function. • Fiber connector: LC(SFP) • Support auto negotiation of 10/100Mbps and full duplex. • Support auto MDI/MDIX • Transmission distance: UTP: up to 100M (MMF) multi-mode Fiber: up to 2KM (SMF) single mode fiber: up to 100KM (depends on different models) • With reset function, power supply P&P not necessary, easy for system maintenance. • Indicators for Power, fiber optic and UTP port. • External power supply • Easy and fast to install and operate for wall mounting and desktops. Network Cables: RJ45 port: Cat5 or above Wave length: 1310nm 62.5/125,50/125um, MMF 1310nm/1550nm 9/125um, SMF Indicators : 4.1 LED indicators 1) Power (red ): Normally on. 2) LFP (green): Blink indicates fault signal being received remotely. 3) FXSD (green): Light normally on indicates the device inspect fiber module; off-light indicates the device doesn't recognize the fiber module. 4) TP_FDX/Col ( green ): Normally on indicates RJ45 port is on full-duplex mode; blink indicates RJ45 port exists data conflict; offindicates RJ45 port is on half-duplex mode. 5) FX_LINK/ACT (green): Normally on, indicates fiber port well connected; blink indicates transceiver is receiving or transmitting signal from fiber optical connector. 6) FX_FDX/Col (green ): Normally on, indicates fiber port is on full-duplex mode; blink indicates fiber port exits data conflict; offindicates fiber port is on half-duplex mode. 7) TP_SPD (green ): Normally on indicates RJ45port's speed rate is 100Mbps 8) TP_LINK/ACT(green): Normally on indicates RJ45 port is well connected; blink indicates transceiver is receiving or transmitting signal from RJ45 port. Notice: Transmission distance is different accordingly, please use Cat5 or above UTP cable for long distance transmission. Installation instructions : 1. Before installation, please check the following devices and accessories, in case of any accessories gone,please contact with your supplier. 1) 1 pair of optic fiber media converter 2) 2 pieces power adaptor 3) 1 installation manual 4) 1 warranty card 2. Installation steps: 1) Power off 2) Connect media converter with 10/100Base-TX device ( Ethernet server, work station, router, switch, concentrator, etc.); Make sure the distance of UTP cable(cat5 or above) less than 100m; Connect RJ45 port of media converter and the 10/100Base-TX device with UTP cable(cat 5 or above). UTP port support auto MDI/MDIX, so no need to make cable choice or use UPLINK port. Please check the following: 3) Connect media converter to media converter 4) Poweron Troubleshooting : When the device cannot work well, the methods to solve the problems as below: 1) Make sure the installation well according to the manual. 2) Make sure UTP cable connect well; the cable design complies with EIA/TIA568A or 568B international standards. 3) Make sure optical module's fiber jumper is well connected, and its connection direction is correct; 4) Press reset button to check if the device can work properly. You can also check the reason according to indicators' status as below: 5) Replace the trouble device with a normal working device to check if the device is damaged. 6) If all the above methods still don't work, please contact with manufacturer directly. Making methods of RJ45 connector : Required tools: wire crimpers, network cable tester. The wire sequence of RJ45l connector must complies with international standard of EIA/TIA 568A or EIA/TIA568B. Strip about 2cm's of insulating jacket to let 4 pairs UTP can be seen. Separate 4 pairs UTP cable, and try to straighten each pair. Arrange 8 cables with correct line sequence of EIA/TIA 568A or EIA/TIA 568B. Cut thread residue and leave 1.5cm wire which exposed outside the insulating layer, and ensure 8 wires are straight and neat. Put 8 wires in RJ 45 connector, then press with wire crimpers. Repeat above five steps , make the other side of UTP cable; Then using the cable tester to test whether the cat5e/6 works normally. Note: This device support Auto MDI/MDIX, so the different wire sequence at two sides of the cable is allowed when using RJ45 port for transmission. After-sale Service : Once the clients order the device, they enjoy free warranty service. If the malfunction is caused by its quality itself, you can return fully within 15 days, replace new devices within 30 days, enjoy free warranty within 1 years, and enjoy lifetime maintenance. The malfunctions and damages cannot enjoy free warranty if they are caused by the factors below: 1) All man-made damage, including operation in abnormal working environment or not in accordance with the instructions and storage failures; 2) Users disassemble or repair voluntarily, or do the maintenance at other service points undesignated by Folksafe ; 3) Malfunction or damage by irresistible accidents and natural disasters, such as fire, lightning and earthquakes, etc. 4) Other troubles made by improper use. Learn More

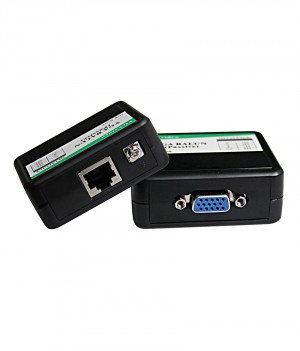

•1-CH Passive VGA Balun • No need power supply • Eliminates COAX or other cabling • Supported PC resolutions; VGA, SVGA, XGA, SXGA and WXGA • Transmits VGA (640x480) Video up to 300ft. over a single UTP CAT5e/6 cable. •Eliminates costly and bulky VGA cable •Used in pairs, the VGA Balun allows VGA video to be transmitted up to 107m at 800*600 resolution via UTP cat5e/6 •Use existing structured cabling system •No need power supply •Save conduit space •Eliminates costly and bulky VGA cable •Ultra compact size for installation versatility. •Carry Video from Desktop or Laptop PC or other VGA sources to remote, displays or distribution locations utilizing cost effective CAT5 cable •Allows a simple and cost effective solution for meeting rooms, classrooms, digital signage and other presentations Quick Setup Guide Plug your VGA cable coming from your PC into the Transmit Baluns HD15 connector. Secure the cables using the lock down screws. Make a similar connection between the Receive Baluns HD15 connector and your display. Insert the CAT5 cable into both ends of the Baluns. You may use standard EIA 568A/B termination. NOTE: Baluns are interchangeable for transmit or receive functions. Technical Specifications Signal: VGA, VESA VP&D 1.0, VIP ver 2.0 Bandwidth: DC to 60 MHz Maximum Distance*: VGA: (640 x 480) 600ft. SVGA : (800 x 600) 400ft. XGA : (1024x768) 350ft. WXGA : (1280x768) 250ft. SXGA : (1280x1024) 250ft. UXGA : (1600x1200) 200ft. WUXGA: (1920x1200) 200ft. (*Longer distances are possible but best quality is attained at shorter distances) Maximum Video Input Level: 1.1Vp-p Insertion Loss per Pair of Baluns: Less than 3dB over frequency range. Video Impedance: Input: RGB 75��(HD15) Unbalanced. Output: RGB 100�� (RJ45 shielded) Balanced Cable (UTP): CAT5e/6 24 Gauge or lower solid copper twisted pair. Connectors: One (1) VGA (HD15) Female for Video, One (1) RJ45 jack RJ45 Pinout: Pin #1 = Blue + Pin #2 = Blue - Pin #3 = V Sync Pin #4 = Green Pin #5 = Green - Pin #6 = H Sync Pin #7 = Red + Pin #8 = Red Compatibility: Does not support VGA handshaking (DDC) information. General: Dimensions: 65*55*25mm Weight: 80g Enclosure: ABS engineering plastic Accessories: VGA cable Learn More

Ethernet signal and power transmitter FS-EPOC7004T-POE can transmit high speed Ethernet signal and power via coaxial cable. Its maximum transmission distance for Ethernet signal is 2000 meters and 500 meters for power with max 48V2A power supply. By adopting advanced OFDM technology to process the data, FS-EPOC7004T-POE has high capacity of anti-jamming in real operating environment and its physical broadband can up to 200Mbps. With built-in multi-stage surge and lightning protection design, FS-EPOC7004T-POE avoids devices from lightning damage. This product can be widely used in fields such as network expanding system, network security system, network information distribution system, network upgrading & expanding system, railway and urban transportation, metallurgy and mining, field operations etc. • Support IEEE802.3af POE and 4-CH Ethernet 10/100Mbps signal up to 100m. • Power supply function over Coax (48VDC) • Using coaxial cable transmits Ethernet signal and power. Maximum transmission distance of Ethernet signal can be 2000 meters and 500 meters of power (match FS-EPOC7004T-POE with FS-EPOC7001R) with max 48V2A power supply. • Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3X standards • With high speed modem technology, the physical broadband can up to 200Mbps. • Built-in multi-stage surge and lightning protection design. • Support Auto MDI/MDIX Function • Low power consumption, automatic error-correction coding technology. • Easy installation, good presentation, fast network connection. Applications • Security Monitoring System • Multimedia Network Teaching System • Medical Monitoring Display System • Industrial Automation Control System • Banking, securities, financial information display system • Remote Network Server Monitoring • Department Store Security • Casino Security • Hospitals, Airports and banks • School Campuses • IP cameras based on coaxial cable or telephone wire • NVR based on coaxial cable or telephone wire • Video interphone based on coaxial cable or telephone wire • Intelligent home POS, broadband intelligent power grid etc. • Industrial fields such as railway, telecommunication, oil prospecting, coal mining etc. Installation 1.Connect FS-EPOCTX remote LAN port to network device RJ45 output; Connect 48VDC power output port to network device power interface; Fix BNC connector on both end of coaxial cable and connect one end with FS-EPOCTX BNC interface. 2.Connect FS-EPOCRX LAN port to network device RJ45 input; connect the other end of coaxial cable to FS-EPOCRX BNC interface; Plug 48VDC power into the power interface of the transmitter. Check and ensure all connections are right, then connect power supply. 3.With internet connected, device tries connection automatically. Link indicator (yellow light) turns on and indicates coaxial cable is well connected; green light quick shining means internet signal transmission is in normal. Learn More

This product uses special compression modulation technology, on the front end transmitter) let 2-channel AHD/CVI/TVI HD camera to compressed, then made into digital signal in coaxial cable transmission. The back-end (receiver) through modulation, reductive into 2-channel HD signals for HD DVR (AHD/CVI/TVI) or matrix use after,decompression. This series of products can be in adaptive adjust transmission distance within 0-400 m. It supports 2 channel video signals in one coaxial cable by way of Frequency Division Multiplexing, with all data transmission real-time and all images high-definition and non-delay. It is suitable for improvement of old projects and building under new projects. Features: It’s designed according to projects with minimum installation volume requirement. 2-CH video in one coaxial cable transmission. FDM technology is easy for multi-channel signals transmission only in one coaxial cable without any delay and interference. Perfect support coaxial video line, 75-3, 75-5, RG59 wire, etc. Learn More

FS-EPOC7001R Ethernet signal and power transmitter FS-EPOC7001R can transmit high speed Ethernet signal and power via coaxial cable. Its maximum transmission distance for Ethernet signal is 2000 meters and 500 meters for power. By adopting advanced OFDM technology to process the data, FS-EPOC7001R has high capacity of anti-jamming in real operating environment and its physical broadband can up to 200Mbps. With built-in multi-stage surge and lightning protection design, FS-EPOC7001R avoids devices from lightning damage. This product can be widely used in fields such as network expanding system, network security system, network information distribution system, network upgrading & expanding system, railway and urban transportation, metallurgy and mining, field operations etc. • Single Channel Ethernet signal and power Receiver • Using coaxial cable transmits Ethernet signal and power. Maximum transmission distance of Ethernet signal can be 2000 meters and 500 meters of power with max 12V2A power supply. • Accord with standards of EEE802.3 10BASE-T,IEEE802.3u 100BASE-TX. • With high speed modem technology, the physical broadband can up to 200Mbps. • Built-in multi-stage surge and lightning protection design. • Low power consumption, automatic error-correction coding technology. • Easy installation, good presentation, fast network connection. FS-EPOC7001R Ethernet signal and power transmitter FS-EPOC7001T can transmit high speed Ethernet signal and power via coaxial cable. Its maximum transmission distance for Ethernet signal is 2000 meters and 500 meters for power with max 12V2A power supply. By adopting advanced OFDM technology to process the data, FS-EPOC7001T has high capacity of anti-jamming in real operating environment and its physical broadband can up to 200Mbps. With built-in multi-stage surge and lightning protection design, FS-EPOC7001T avoids devices from lightning damage. This product can be widely used in fields such as network expanding system, network security system, network information distribution system, network upgrading & expanding system, railway and urban transportation, metallurgy and mining, field operations etc. • Single Channel Ethernet signal and power transmitter • Using coaxial cable transmits Ethernet signal and power. Maximum transmission distance of Ethernet signal can be 2000meters and 500 meters of power with max 12V2A power supply. • Accord with standards of EEE802.3 10BASE-T,IEEE802.3u 100BASE-TX. • With high speed modem technology, the physical broadband can up to 200Mbps. • Built-in multi-stage surge and lightning protection design. • Low power consumption, automatic error-correction coding technology. • Easy installation, good presentation, fast network connection. Applications • Security Monitoring System • Multimedia Network Teaching System • Medical Monitoring Display System • Industrial Automation Control System • Banking, securities, financial information display system • Remote Network Server Monitoring • Department Store Security • Casino Security • Hospitals, Airports and banks • School Campuses Applications: IP cameras based on coaxial cable or telephone wire NVR based on coaxial cable or telephone wire Video interphone based on coaxial cable or telephone wire Intelligent home POS, broadband intelligent power grid etc. Industrial fields such as railway, telecommunication, oil prospecting, coal mining etc. Learn More
