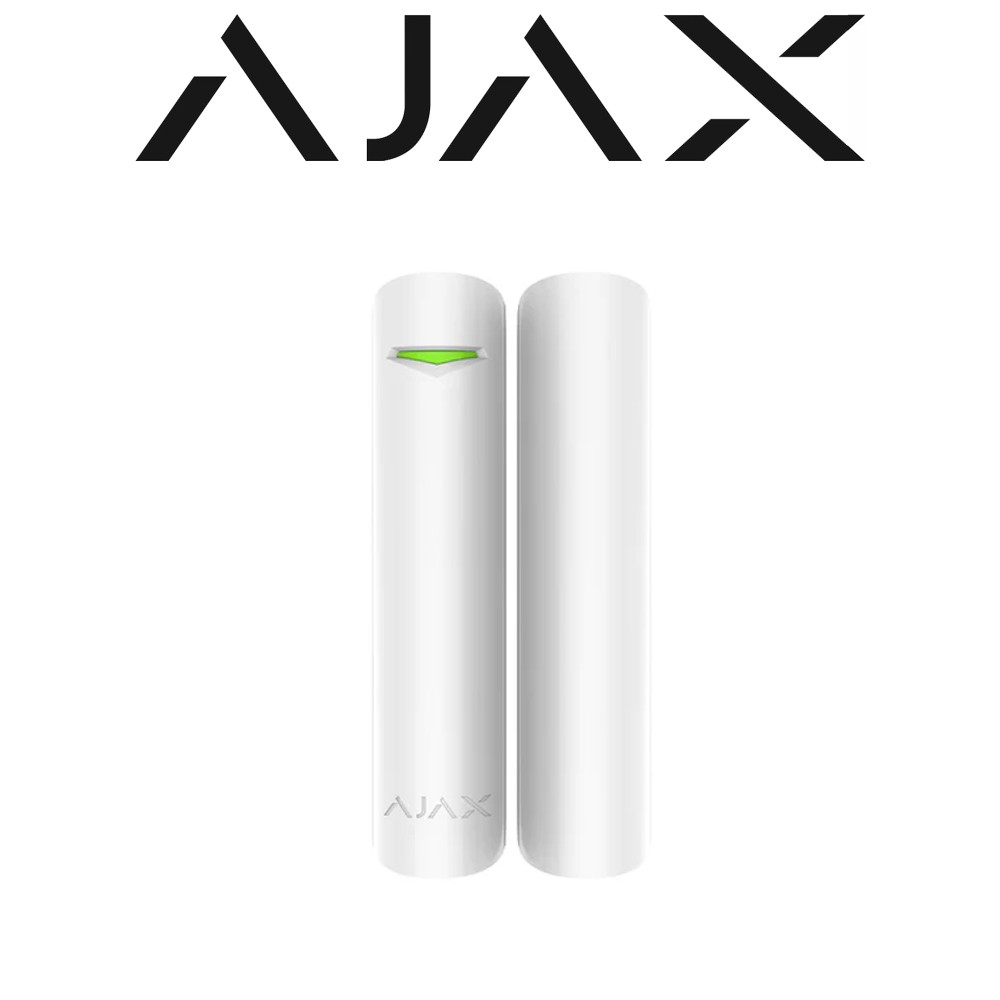

DoorProtect is a wireless opening detector that notifies of first signs of room intrusion by means of an open door or window. It can be mounted on all types of doors including a metal base. The device detects the door or window being opened by means of high end British manufactured reed switch on which the magnetic field acts. It can operate as a transmitter by sending a signal from a wired sensor to the hub.
Please note: This is the device of the Superior product line. Superior products are advanced versions of Jeweller devices. This product line is developed for projects. Only accredited Ajax Systems partners can sell, install, and administer Superior products.
Features:
Plastic reed switches: more durable than the glass ones
Installing magnet on both sides of DoorProtect S: on the right
or left
Equipped with two magnets: small and big
Additional features
Connector for a third party detector with NC (normally closed) contact
Chime function: Ajax sirens make a special sound when the door is opening
Jeweller
Up to 1,200 m of radio communication in an open space
Data is encrypted throughout the transmission process
Regular polling to display current device statuses
Up to 5 years of battery life
Low battery notifications
Panasonic pre installed battery
Compatibility
Hubs
- Hub Plus
- Hub 2 (2G)
- Hub 2 (4G)
- Hub 2 Plus
- Hub Hybrid (2G)
- Hub Hybrid (4G)
Range extenders
- ReX
- ReX 2
Communication with control panel
Jeweller communication
technology
Frequency bands: 868,0 — 868,6 MHz
Communication range: up to 1,200m *In an open space*
Detection
Sensitive elements: 2 × reed switch
Sensors’ resource: 2,000,000 openings
Third-party detector connection: detector with the normally closed
(NC) contact type
Power supply
Battery: 1 × CR123A
Battery life: up to 5 years
Manufacturer: Panasonic
Installation
Operating temperature range: from 10°С to +40°С
Operating humidity: up to 75%
Protection class: IP50
Enclosure
Colour: BLACK or WHITE
Dimensions: 103 × 22 × 21 mm
Weight: 37 g
Product code: 67733.03.WH1
