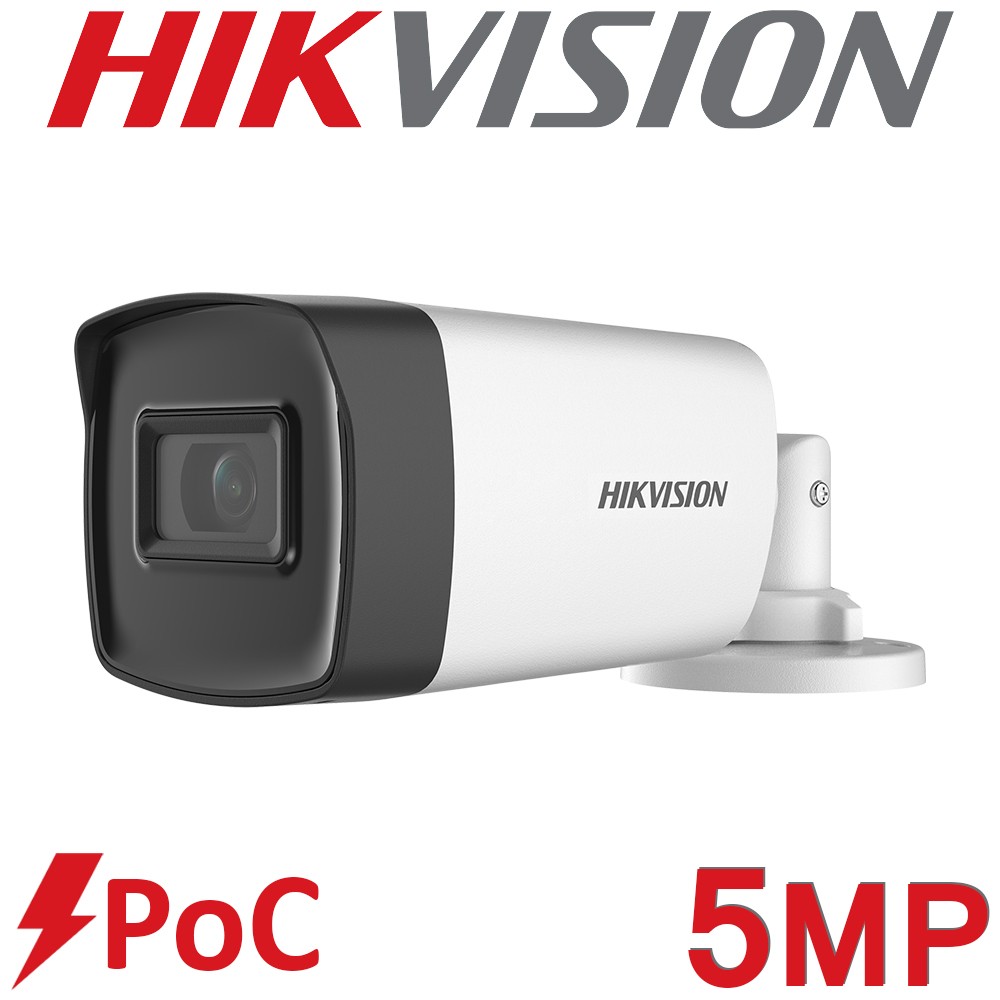

Hikvision 5MP fixed lens EXIR bullet camera• 5MP high performance CMOS
• Adopts HD-TVI technology
• 3.6mm fixed lens
• True day/night
• OSD menu
• Smart IR
• Up to 40m IR distance
• IP67 weatherproof
• Digital wide dynamic range
• PoC.af
• 12V DC
Specification
| Camera | ||
|---|---|---|
| Min. Illumination: | | | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time: | | | 1/25(1/30) s to 1/50,000 s |
| Lens: | | | 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens |
| Lens Mount: | | | M12 |
| Adjustment Range: | | | Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360° |
| Day& Night: | | | IR cut filter with auto switch |
| HD Video Output: | | | 1 Analog HD output |
| Synchronization: | | | Internal Synchronization |
| Menu | ||
| D/N Mode: | | | Auto / Color / B/W |
| Auto White Balance: | | | Auto/MWB |
| BLC: | | | Support |
| AGC: | | | Support |
| Language: | | | English/Chinese |
| Function: | | | Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixel correction, Smart IR |
| General | ||
| Operating Conditions: | | | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
| Power Consumption: | | | Max. 5 W |
| IR Range: | | | Up to 80m |
| Communication : | | | Up the coax Protocol: HIKVISION-C(Coaxitron) |
| Dimension: | | | 86.7 mm × 81.6 mm × 226 mm (3.41" × 3.23" × 8.67") |
| Weight: | | | Approx. 680 g (1.5 lb.) |
