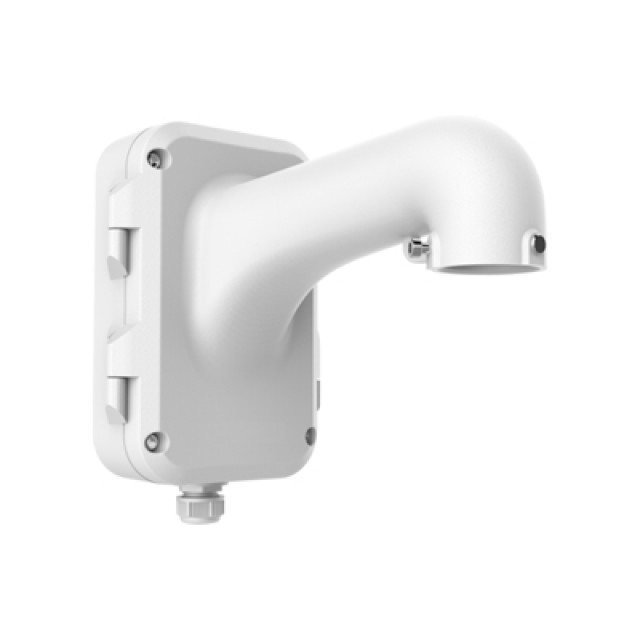

Mount: Wall Mount Bracket for Speed Dome
Construction: Aluminium alloy
Weight: 2150g

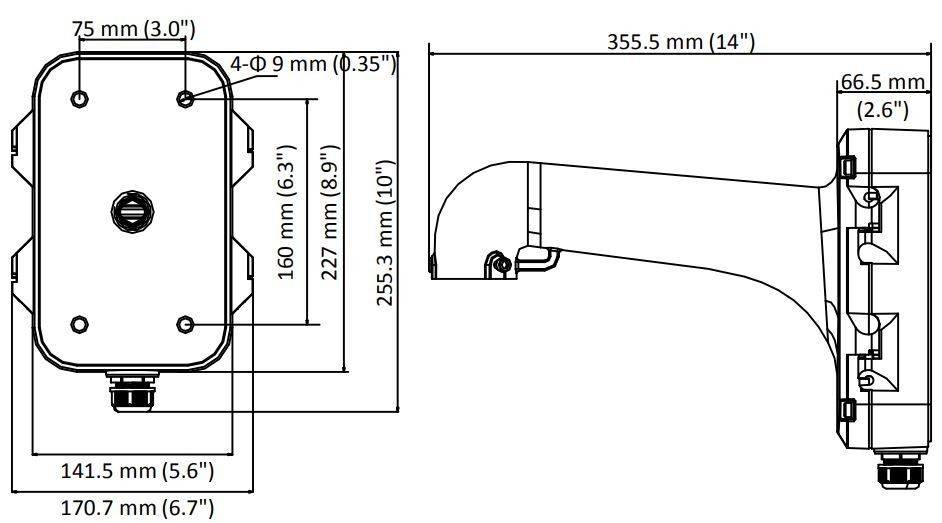

Dimension: 355.5x255.3x170.7mm
Color: Hikvision White
Feature: Suitable For Speed Dome Pendet Mounting - DS-2DE5174-A DS-2DE5174-AE DS-2DE5184-A DS-2DE7174-A DS-2DE7184-A DS-2DE7186-A DS-2DF5274-A DS-2DF5284-A DS-2DF7274-A DS-2DF7274-AEL DS-2DF7284-A DS-2DF7284-AW DS-2DF7286-A DS-2DF7286-AEL DS-2AE4223TI-A , and other with same structure cameras
Note
• The bracket should be installed on the flat surface.
• Waterproof rubber is necessary for the outdoor application.
• The wall must be capable of supporting at least 3 times as much as the total weight of the speed dome and the bracket.
• The bracket’s maximum load capacity is 10 KG (22 lb.).
