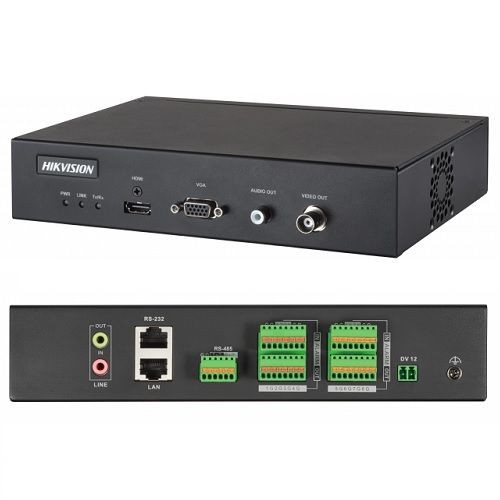

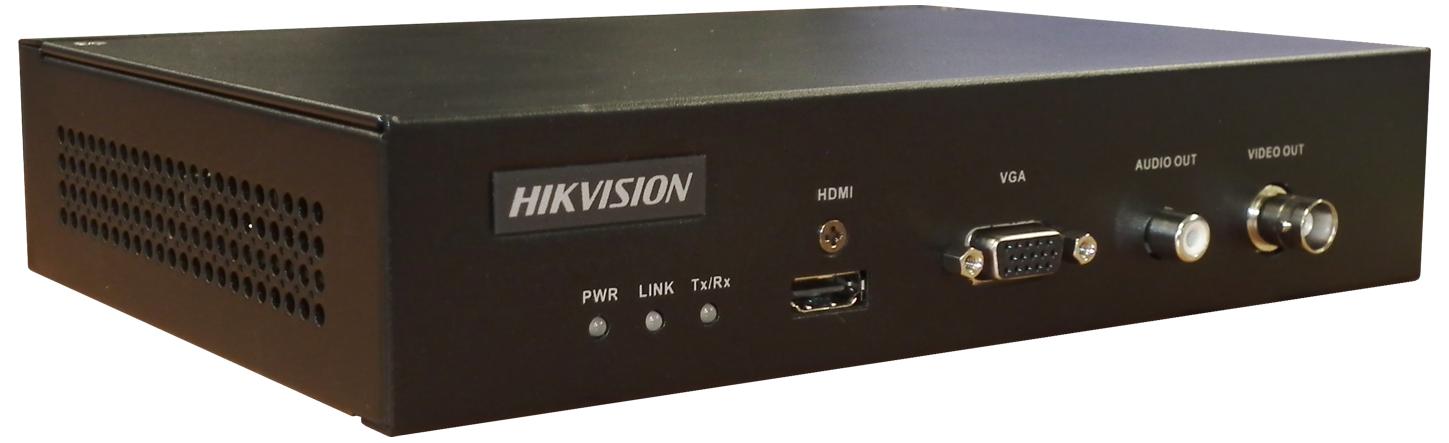

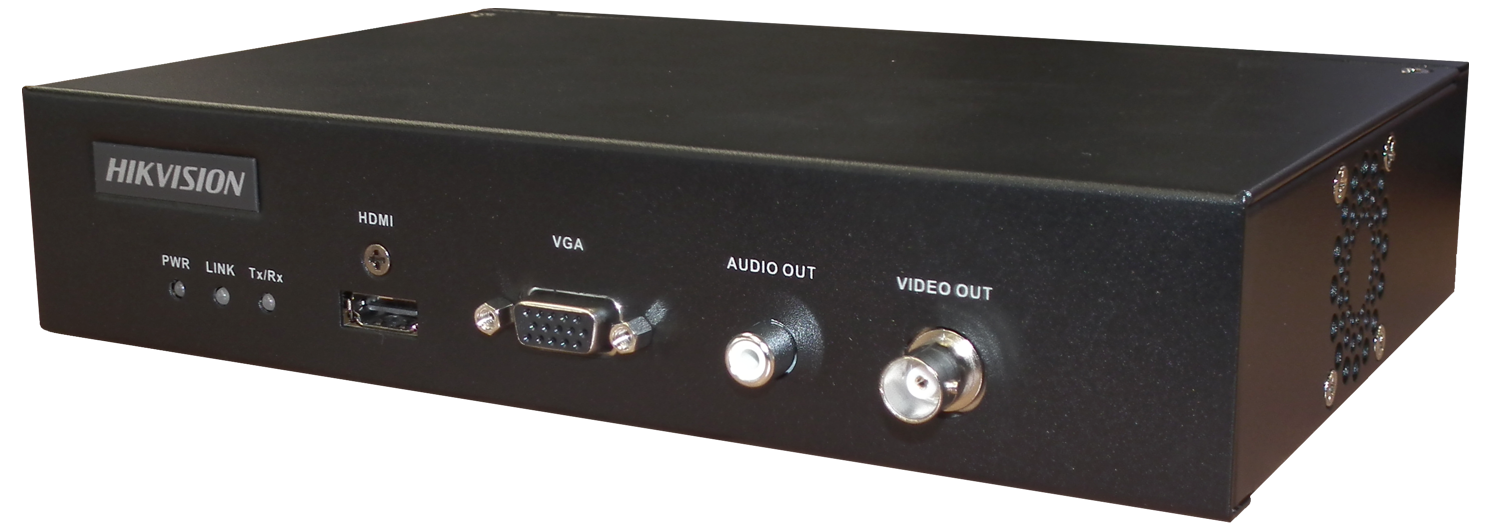

• DS-6901UDI provides HDMI, VGA, and BNC output interfaces.
• Up to 4K (3840 × 2160@30Hz) via HDMI output interfaces (only for even interface).
• Up to 16-ch decoding at 2MP resolution
• H.265+/H.265, H.264+/H.264, MPEG4 and MJPEG video compression.
• PS, RTP, TS, ES, HIK encapsulation formats.
• Three encoding levels: baseline, main, and high-profile.
• G.722, G711A, G726, G711U, MPEG2-L2, and AAC audio compression.
• Two decoding modes: active decoding and passive decoding.
• Remote video files’ decoding output.
• Supports window opening and window roaming.
• Supports multi-screen control with PC installed with RSC server.
• Supports Wi-Fi module access to display the signal from IOS/Android mobile phone or pad on video wall.
• Wi-Fi can be enabled via the Web browser or client software. You can get stream and decode the video on the video wall when Wi-Fi is enabled if no wired network can be accessed.
• Gets stream and decodes via URL and RTSP from encoding devices.
• Displays the decoded video stream on the video wall by directly linking cameras or by stream media forwarding.
• You can configure what the video wall show when decoding ends and streaming fails via the Web browser and client software.
• Configurable LED width and height parameters when the LED is connected.
• Regular and irregular virtual screen configurable to display multiple signal sources and get rid of the restriction of physical screen.
• Accessible by thermal network camera and you can view the temperature measurement, dynamic fire source detection, ship detection and VCA information in live view and playback.
• You can enable or disable the smart information for the thermal network camera.
• Remote PTZ control via transparent channel.
• Two-way audio.
• Port aggregation technology (Ethernet Channel).
Specification
| Video/Audio Output | |
|---|---|
| Audio Output: | 1-ch, 1 RCA interface |
| HDMI Output: | 1080p: 1920 × 1080@50/60Hz UXGA: 1600 × 1200@60Hz (only for even interface) SXGA: 1280 × 1024@60Hz 720p: 1280 × 720@50Hz/60Hz XGA: 1024 × 768@60Hz 4K: 3840 × 2160@30Hz (only for even interface) |
| BNC Output: | 1-ch, 1 RCA interface |
| VGA Output: | 1080p: 1920 × 1080@50/60Hz SXGA: 1280 × 1024@60Hz 720p: 1280 × 720@50Hz/60Hz XGA: 1024 × 768@60Hz |

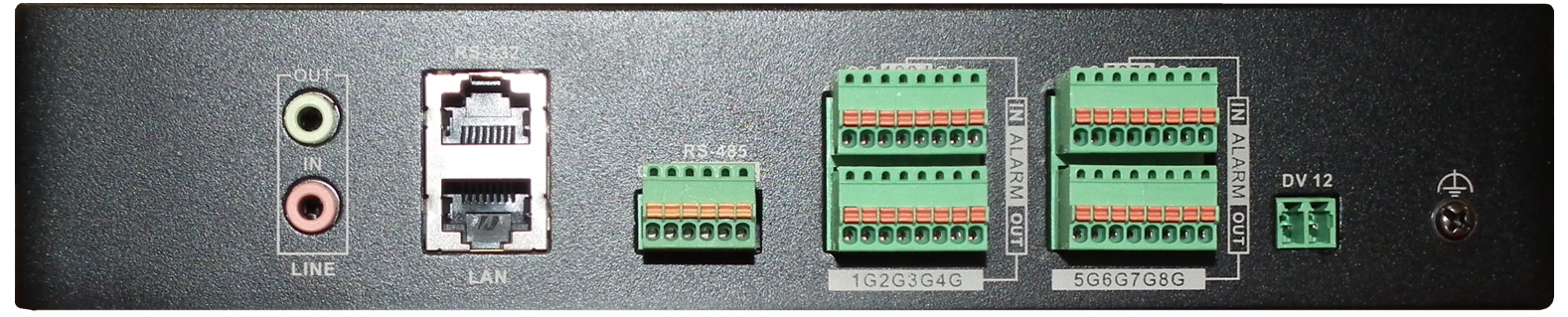

| External Interfaces | |
|---|---|
| Serial Interfaces: | 1 RS-232, 1 RS-485 |
| Network Interfaces: | 1* 10/100/1000 Mbps self-adaptive Ethernet interface |
| Video/Audio Input | |
|---|---|
| Two Way Audio: | 1-ch input, 1-ch output, 3.5 mm connector (2.0 Vp-p, 1 KΩ) |
| Video Input: | None |
| General | |
|---|---|
| Working Temperature: | -10 °C ~ +55 °C (14 °F ~ 131 °F) |
| Weight : | ≤1.2 kg |
| Working Humidity: | 10% ~ 90% |
| Power Supply: | 12V DC |
| Dimension(W x H x D): | 220 × 148 × 45 mm (8.66" × 5.83" × 1.77") |
| Consumption: | ≤15W |
| Decoder Specifications | |
|---|---|
| Decoding Capability: | 2-ch@12MP, 4-ch@8MP, 6-ch@5MP, 10-ch@3MP, 16-ch@1080p simultaneous decoding |
| Decoding Resolution : | 12MP, 8MP, 5MP, 3MP, 1080P, 720P, and 4CIF; |
| Input Interfaces : | None |
| Multi-division Display: | 1/4/6/8/9/12/16 |
| Alarm Output Terminals: | 8 |
| Output Interfaces: | 1 VGA/HDMI, 1 BNC |
| Alarm Input Terminals: | 8 |
