• Dimension (L×W×H): 86×86×28.9mm(3.39×3.39×1.14");
• Structure: aluminum alloy panel, metal button;
• Current Rating: 3A@36VDC Max;
• Output Contact: NO/NC/COM Contact;
• Aging Test: already passed 500 thousand times aging test;
• Suitable Doors: hollow doorframe and embedded-electric box;
• Working Temperature: -10°C to +55°C (14°F to 131°F);
• Working Humidity: 0 to 95% (relative humidity);
• Panel: aluminum panel with sandblast;
• Product Weight: 0.25kg (0.55lb).
Specification

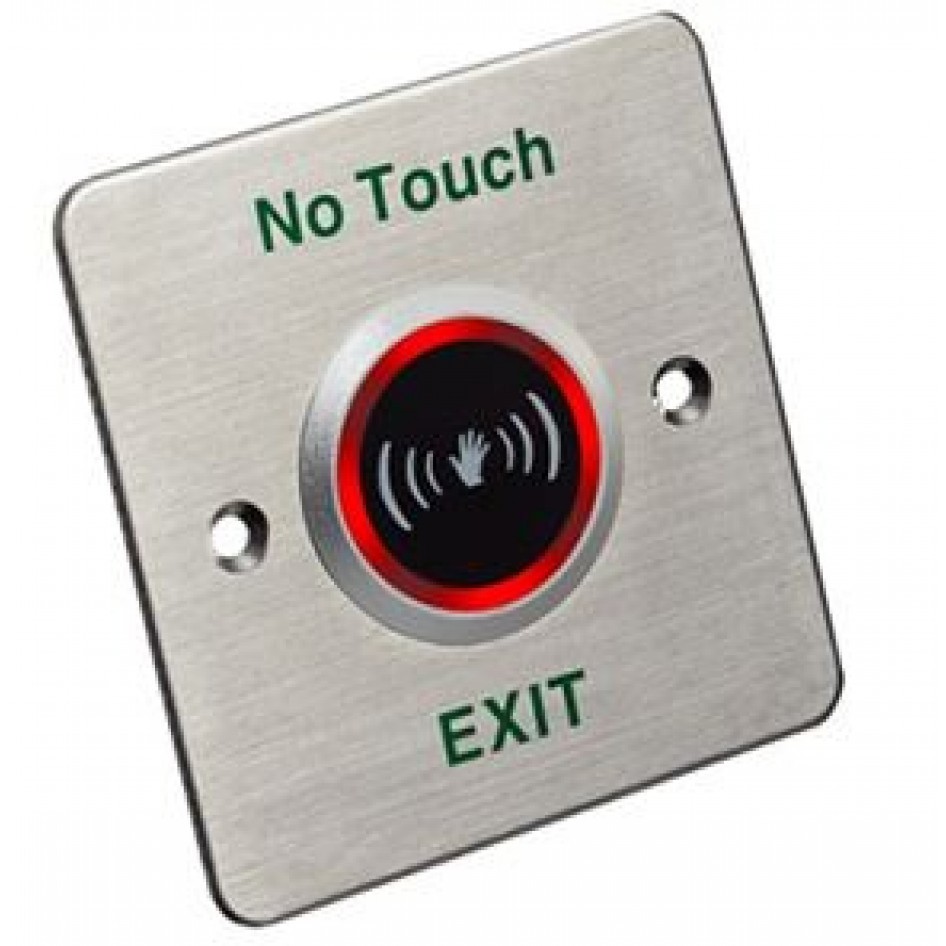

| General | |
|---|---|
| Output Contact: | NO/NC/COM Contact |
| Aging Test: | already passed 1 million times aging test |
| Working Current: | 20mA(standby), 50mA(working current) |
| Power Supply: | 12VDC |
| Suitable Doors: | all kinds of narrow doorframes |
| Maximum Inductive Distance: | 40 to 100mm(1.57 to 3.94") (adjustable) |
| LED Indicator: | white/green/red LED, indicates power-off/active/Standby |
| Panel: | aluminum panel |
| Working Humidity: | 0 to 95% (relative humidity) |
| Working Temperature : | -20°C to +50°C (-4°F to 122°F) |
| Dimensions (L×W×H): | 86mm × 86mm × 25.7mm(3.39'' × 3.39'' × 1.01") |
| Weight: | 0.15kg (0.33lb) |
