• Two-pin wire for power supply and network access
• UI V2.0: User friendly design

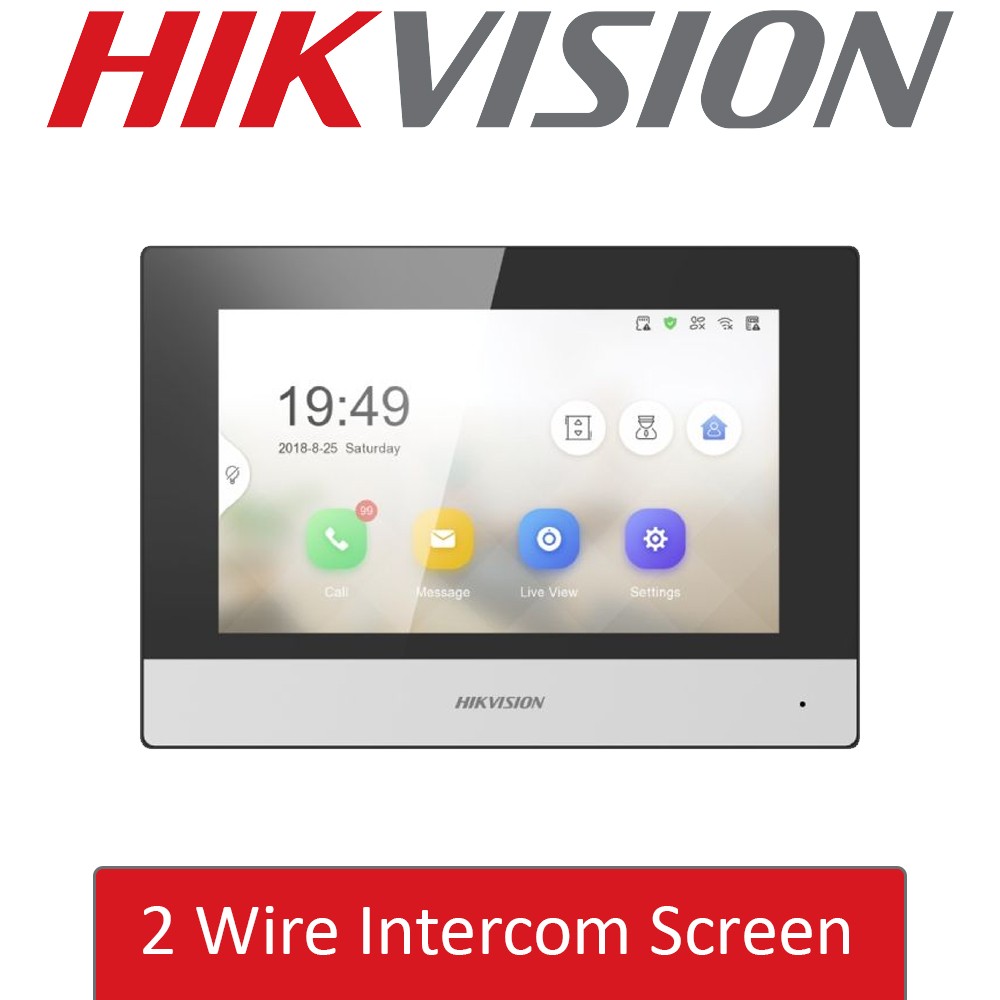

• 7-inch colorful touch screen with resolution 1024 × 600
• 2-ch transmission plan
• Stores messages and captured pictures in the TF card
• Remote unlocking via the client software or the mobile client
• Views live videos of door stations and linked cameras
• Supports wireless network
Specification
| System Parameters | |
|---|---|
| Processor basic frequency: | 1 G |
| Operation System: | Embedded Linux Operation System |
| Flash: | 16 MB (32 MB hardware compatibility) |
| Memory: | 128MB |
| Audio Parameters | |
|---|---|
| Volume: | Local or software control |
| Audio Input: | Built-in Omnidirectional Microphone |
| Audio Output: | Built-in Loudspeaker |
| Audio Compression Standard: | G.711 U |
| Audio Compression Rate: | 64 Kbps |
| Audio Quality: | Noise Suppression and Echo Cancellation |
| Display Parameters | |
|---|---|
| Display Screen: | 7-Inch Colorful TFT LCD |
| Display Resolution: | 1024 × 600 |
| Operation Method: | Capacitive touch screen |
| Network Parameters | |
|---|---|
| Wireless network: | Wi-Fi 802.11b/g/n |
| Network Protocol: | TCP/IP, SIP, RTSP |
| Extended Application | |
|---|---|
| IPC: | Support |
| Indoor call elevator: | Support |
| Mobile client: | Support |
| Device Interfaces | |
|---|---|
| Power interface: | Two-wire interface |
| Relay Output: | 2 |
| Alarm Input: | 8-ch alarm inputs |
| RS-485: | 1 |
| TF Card (micro SD card): | Support, Max. 128 GB |
| General | |
|---|---|
| Power Supply: | Two-wire |
| Power Consumption: | ≤6W |
| Working Humidity: | 0% to 90% |
| Working Temperature: | -10 °C to 50 °C (-14 °F to 122 °F) |
