Introduction

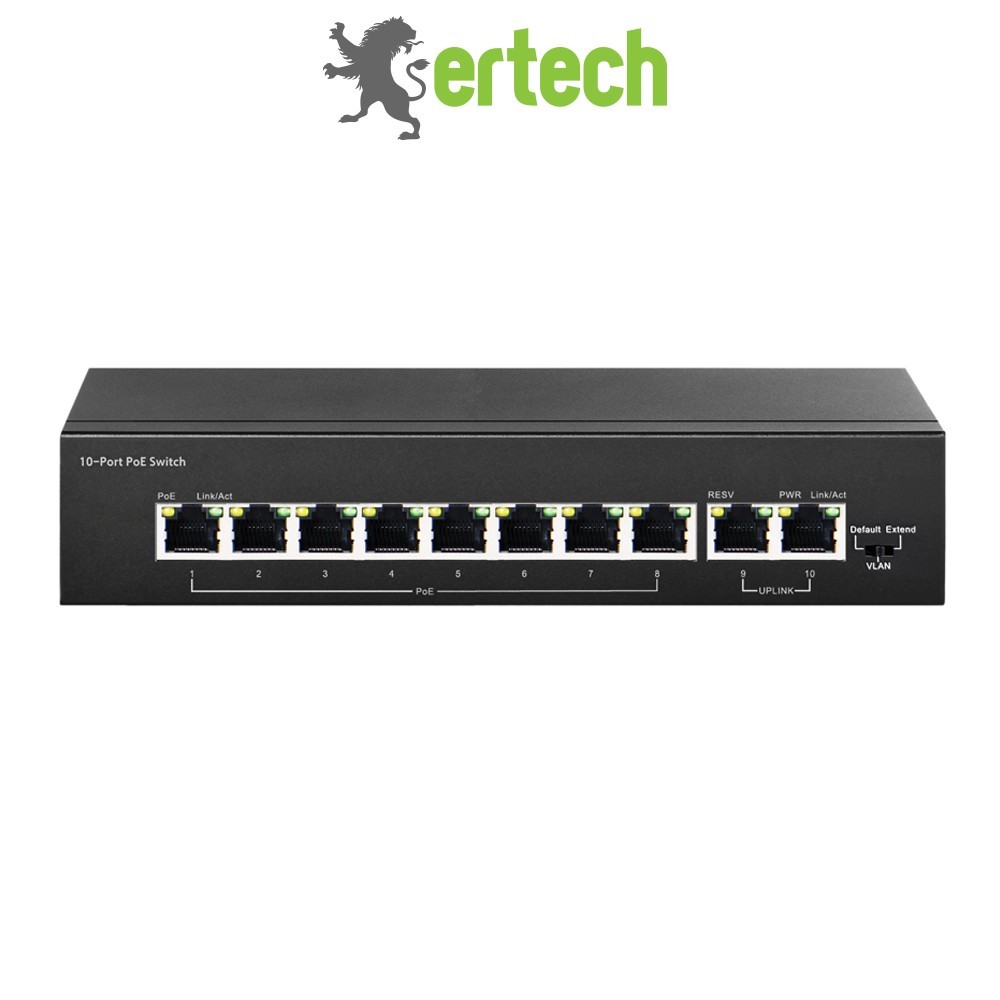

AI8010 is a 10-port built-in power supply POE switch. The product has 3 working modes, standard mode, VLAN mode, and Extend mode. In standard mode, all ports communicate freely; when VLAN mode is enabled, ports 1-8 are isolated from each other, which can effectively suppress Network storm, improve network performance In monitoring mode, start Extend mode, the effective transmission distance of 1-8 ports can reach 250 meters, which is suitable for long-distance monitoring and power supply. . The device supports the standard IEEE 802 af/at protocol, and can automatically detect, identify and supply power to PD devices that comply with the IEEE 802 af/at standard, so there is no need to worry about damaging private standard PoE or non-PoE devices.
Key Features
• VLAN mode: Isolate ports 1-8 from each other, which can effectively suppress network storms and improve network performance
• Extend mode: 1-8 ports support 250M meters long-distance power supply (recommended to use super five or more network cables)
• Support wireless access point (AP) and network surveillance cameras (sur veillance cameras) power supply through Category 5 Ethernet cable;
• PD equipment supporting IEEE802.3af/at standard;
• Support upstream port automatic flip (Auto MDI/MDIX);
• Adopt a store-and-forward switching mechanism;
• Intelligent power supply, the lowest power consumption, to ensure the power demand of the PD end;
• With power circuit protection function, it can protect the safety of back-end equipment;
• Zero configuration feature: power is automatically supplied to adaptive devices;
Specification
Network Interface
8 RJ4 5 ports with 10 / 100Mbps PoE function (Port 1~ Port 8 )
2 10 / 100Mbps non-POE function RJ45 ports (Port 9~ Port 10)
Transfer speed
100Mbps full duplex , 10 o r 100Mbps half duplex
Network protocol standard
IEEE 802.3 i , IEEE 802.3 u , IEEE 802.3 x , IEEE 802.3 a f / at
Performance Specifications
Backplane Bandwidth: 2.0Gbps ( non- blocking )
Network Latency ( 10 0 to 100 M bps ): 20 microseconds max (using 64 - byte packet size)
Frame filtering and transfer rate:
10 M ports up to 14,800pp s
100 M ports up to 148,800pp s
LED indicator
Power Indicator
Llink/Act indicator
RESV: reserved
PoE indicator
POE pin
1/2(+), 3/6(-);
Power support
Single port maximum output power 30W
Maximum power supply: 96 W
Physical Specifications
Dimensions ( LxWxH ) : 210mm x 40mm x 152mm _ _
Weight : 1.5kg
Environmental Specifications
Operating temperature: 0°~40° C
Working humidity: 10% ~ 90% , non-condensing
Safety regulations
CE / ROHS / FCC
