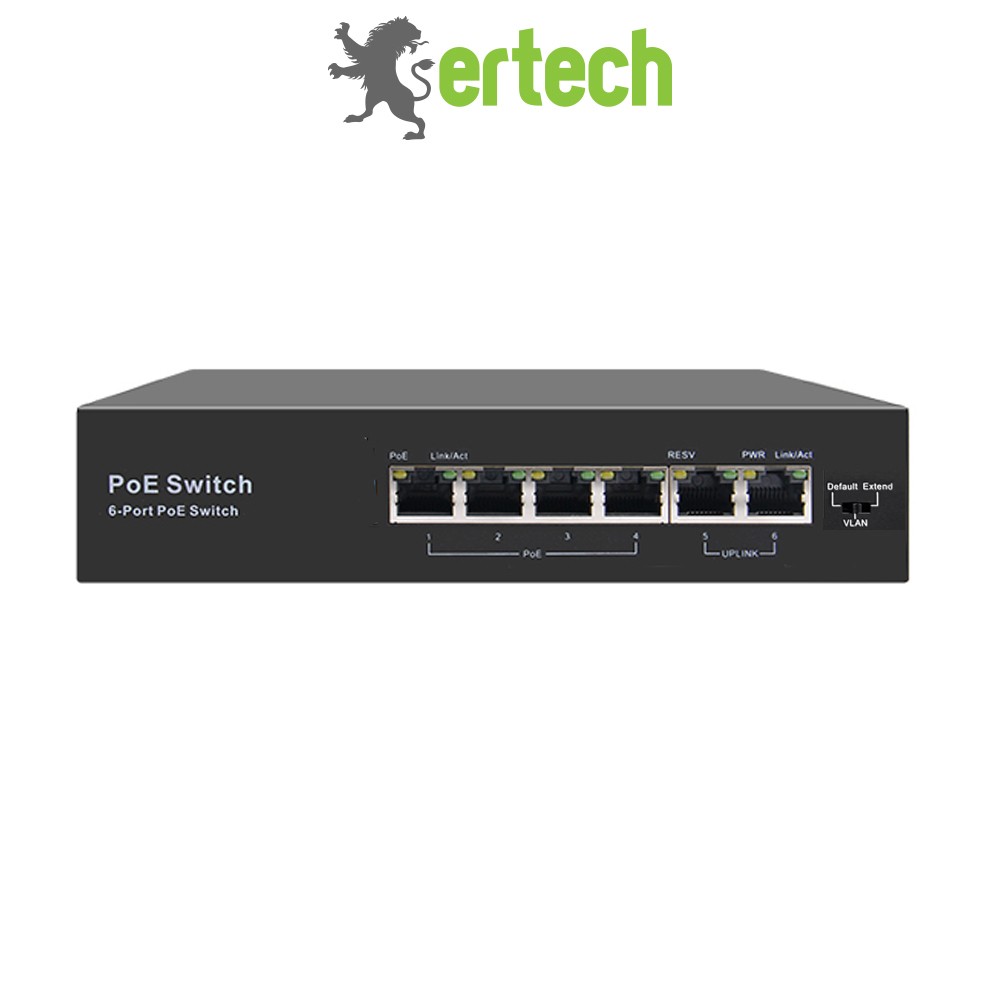

Ertech AI806 4 Port 2 Up-link 60W Network Unmanaged PoE Switch

Ertech AI806 4 Port 2 Up-link 60W Network Unmanaged PoE Switch
Add to Wishlist

Cant see the price? Need help or advice on your purchase? Enquire Today!

Ertech AI806 is a 6-port Poe switch with built-in power supply. The product has three working modes: standard mode, VLAN mode and extend mode. Under the standard mode, all ports communicate freely; The device supports the standard IEEE 802.3 af/at protocol, and can automatically detect, identify and power PD devices that meet the IEEE 802.3 af/at standard, so there is no need to worry about damaging Poe or non Poe devices of private standards.

Key Features
• VLAN mode: isolate 1-4 ports from each other, which can effectively suppress network storms and improve network performance
• Extend mode: 1-4 ports support 250m long-distance power supply (it is recommended to select more than category 5 network cable)
• It supports power supply through wireless access points (APS) and network surveillance cameras of category 5 Ethernet cables;
• PD equipment supporting ieee802.3af/at standard;
• Support automatic turnover of uplink ports (auto mdi/mdix);
• Adopt the exchange mechanism of store and forward;
• Intelligent power supply and lowest power consumption ensure the power demand of PD end;
• With power circuit protection function, it can protect the safety of back-end equipment;
• Zero configuration power supply is automatically supplied to adaptive equipment;
• Fan free design, energy saving and environmental protection;
• Support the power saving function of port without link;


Network Interface
4 RJ4 5 ports with 10 / 100Mbps PoE function (Port 1~ Port 4 )
2 10 / 100Mbps non-POE function RJ45 ports (Port 5~ Port 6)

Transfer speed
100Mbps full duplex , 10 o r 100Mbps half duplex

Network protocol standard
IEEE 802.3 i , IEEE 802.3 u , IEEE 802.3 x , IEEE 802.3 a f / at _ _ _

Performance Specifications
Backplane Bandwidth: 1.2Gbps ( non- blocking )
Network Latency ( 10 0 to 100 M bps ): 20 microseconds max (using 64 - byte packet size)

Frame filtering and transfer rate:
10 M ports up to 14,800pp s
100 M ports up to 148,800pp s

LED indicator
Power Indicator
Llink/Act indicator
RESV: reserved
POE indicator

POE pin
1/2 (+), 3/6/(-);

Power support
The maximum output power of a single port is 30W .
Maximum power supply: 60 W ;

Physical Specifications
Dimensions ( LxWxH ) : 190mm x 131mm x 40mm
Weight : 1.5kg

Environmental Specifications
Operating temperature: 0°~40° C
Working humidity: 10% ~ 90% , non-condensing
Safety regulations :CE / ROHS / FCC
