Product introduction

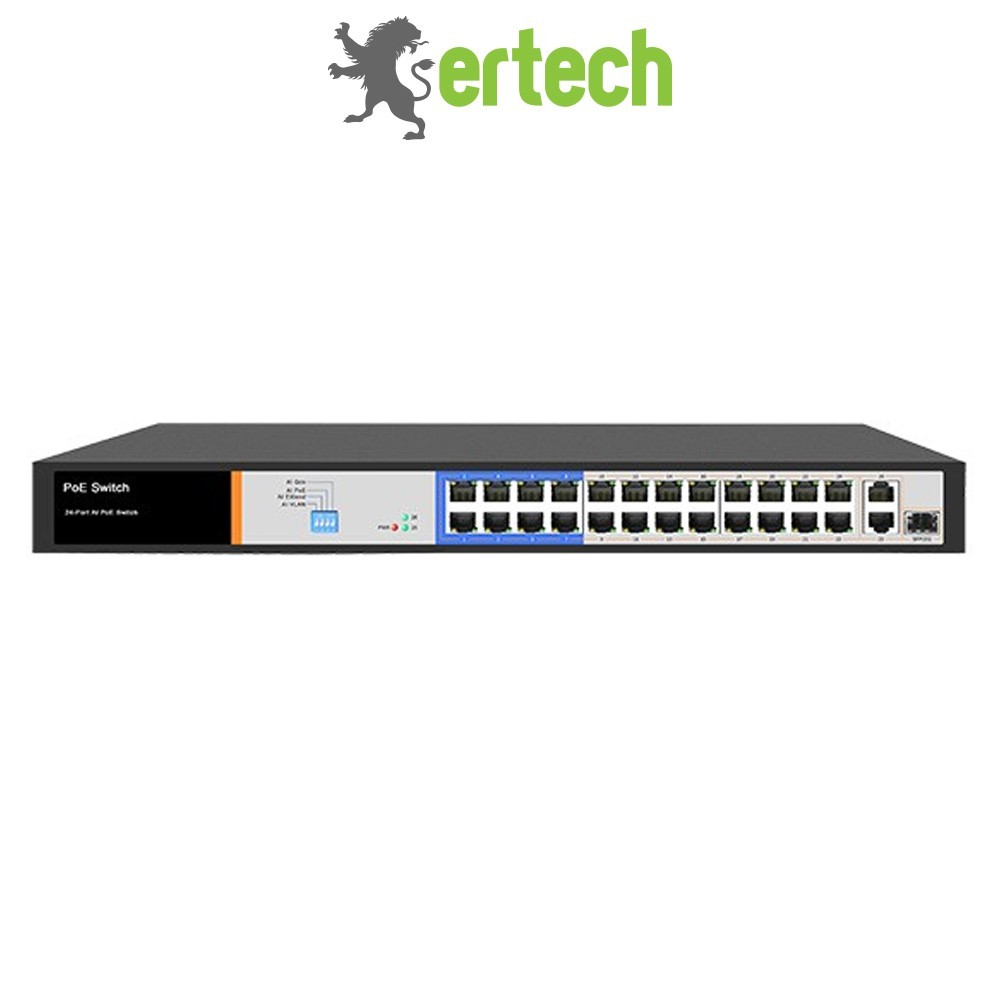

PS3024GS adopts a new generation of high-performance hardware and software platform, provides flexible and cost-effective access and Gigabit uplink ports, and supports complete security protection mechanisms, perfect acl/qos policies and rich VLAN functions.
Support APOLLO visual cloud management operation and maintenance - "139" mode
1: The equipment is centralized to one platform, namely APOLLO platform, for unified management and operation and maintenance.
3: The equipment can be managed and maintained through mobile terminal, PC terminal and local.
9: It can realize nine core technical service sectors of APOLLOplatform
Intelligent control
AI VLAN: isolate ports 1-24 from each other, which can effectively suppress network storms and improve network performance.
AI extend: designed for monitoring application scenarios, the transmission distance of 1-8 ports can reach up to 250 meters.
AI POE: automatically detect the working condition of the port of the PD device within 24 hours, and automatically restart the device in case of any abnormality.
AI QoS: it can give priority to the processing of video data in the network to ensure that the video data is not stuck, smoother and without delay.
Strong business processing ability
Support IEEE 802.1Q VLAN, MAC VLAN, IP VLAN, voice VLAN, and flexibly divide VLANs according to different requirements
Support GVRP and VLAN VPN functions
Support QoS and ACL, and provide flexible security access control policies.
Support IGMP v1/v2 multicast protocol and Poe management Poe power limit
Support hardware watchdog
IPv6 Ping, IPv6 tracert, IPv6 Telnet, IPv6 SSH, IPv6 SSL are supported.
Complete safety protection mechanism
Support the ternary binding of IP address, MAC address and port to filter packets.
Support ARP protection and IP source protection to prevent illegal address counterfeiting including MAC spoofing, IP spoofing and mac/ip spoofing.
Support DOS protection and 802.1x authentication, and control the authorization status of the controlled port.
Support port security and DHCP snooping, effectively prevent private DHCP servers, and ensure the legitimacy of DHCP servers.
Diversified reliability protection
Support loop protection
Support stp/rstp/mstp production tree protocol
Support spanning tree security function
Support static convergence and dynamic convergence
Easy operation and maintenance
Support web network management, CLI command line (console, telnet), SNMP (v1/v2/v3)
Support HTTPS, SSL V3, sshv1/v2 encryption
Support RMON, system log and port traffic statistics
Support cable detection, Ping detection and tracert detection
It supports lldp to facilitate the network management system to query and judge the communication status of the link.
It supports CPU monitoring, memory monitoring, Ping detection, tracert detection, and cable detection.
Specification
|
Network standard |
IEEE 802.3i IEEE 802.3u IEEE 802.3x |
|
Port |
24个10/100/1000Mbps RJ45 port 2 gigabit SFP 1 Console |
|
Protocol standard |
IEEE 802.3:Ethernet Media Access Control (MAC) Protocol |
|
Shortcut function |
One key AI VLAN One key AI Extend (1-8 port 250meters PoE distance) One key AI PoE One key AI Q0S (Video priority) |
|
DHCP |
Support DHCP Snooping |
|
VLAN |
Support 4K VLAN Support 802.1Q VLAN、MAC VLAN ,IP VLAN Voice VLAN |
|
MAC address table |
Comply the IEEE 802.1d standard Support MAC address learning and aging automatically Support static, dynamic, filter address table |
|
Safety |
Password protection Support based on the port number, IP address, MAC address restrictions on user access Support HTTPS、SSL V3、TLS V1、SSH V1/V2 Support IP-MAC-PORT ternary binding Support ARP protection, IP source protection, DoS protection Support DHCP Snooping、DHCP attack protection Support 802.1X certificated、AAA Support port security, port isolation Support CPU protection |
|
PoE management |
Support PoE power limit Support PoE chip status view Support setting PoE port priority Support setting PoE power supply time period |
|
Access control (ACL) |
Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering Support port mirroring, port redirection, flow rate limiting, QoS re-marking |
|
Quality of Service (QoS) |
Support 8 port queue Support port priority, 802.1p priority, DSCP priority Support SP、WFQ、WRR、Priority scheduling algorithm |
|
Spanning Tree |
Support STP(IEEE 802.1d)，RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering |
|
Multicast |
Support IGMP v1/v2 Snooping Support fast leave mechanism Support multicast VLAN Supports multicast filtering, packet statistics, and unknown multicast discards. |
|
Storm suppression |
Support multicast suppression Support broadcast suppression Support unknown unicast suppression |
|
Link aggregation |
Support static aggregation Support dynamic aggregation Support IP, MAC, and hybrid load balancing modes Supports up to 32 aggregation groups |
|
IPv6 |
Support IPv6 Ping、IPv6 Tracert、IPv6 Telnet Support IPv6 SSH 、IPv6 SSL |
|
Management and maintenance |
Support WEB network management (HTTP, HTTPS, SSL V3) Support CLI (Telnet, SSH V1/V2, local serial port) Support SNMP V1/V2/V3 Support LLDP、RMON Support ARP protection, IP source protection, DoS protection Support CPU monitoring, memory monitoring Support system log, grading warning Support Ping, Tracert detection, cable detection |
