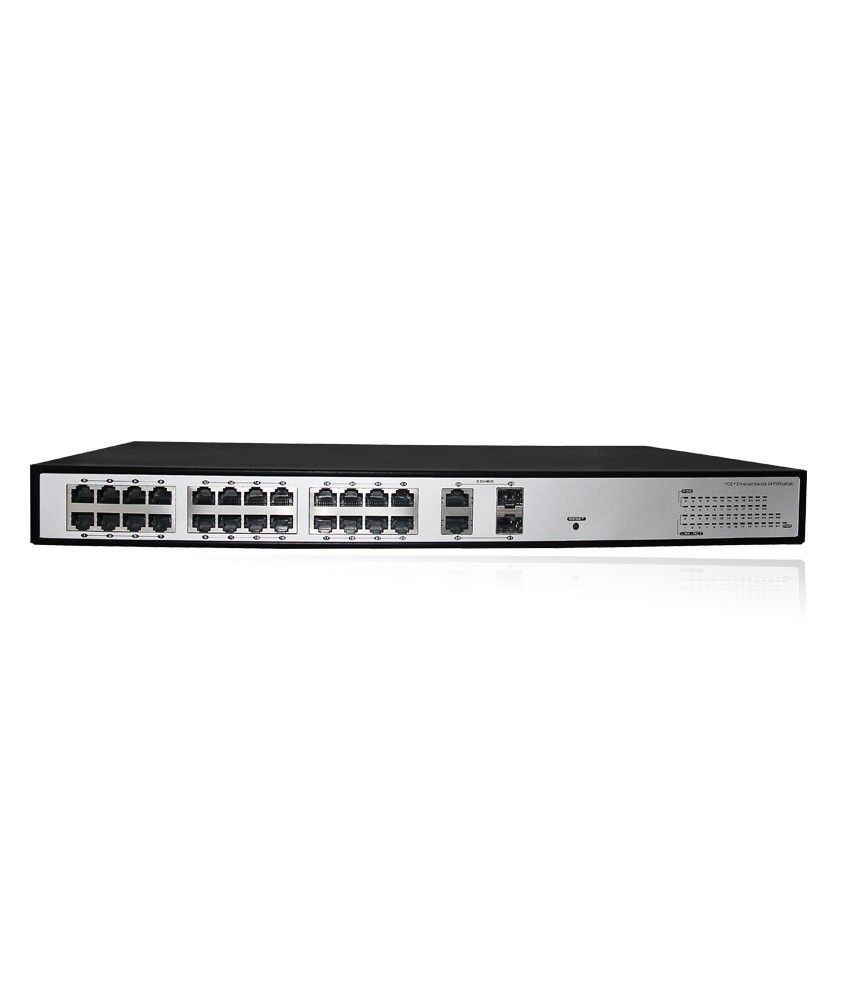

FS-S1024EP-2C is specialized unmanaged PoE switch designed for video surveillance and network project system, etc. It provides 24 x 100Mbps Ethernet ports and 2 x 1000Mbps combo uplink port (2x10/100/1000Mbps port or 2x1000Base-X SFP optical fiber port), can effectively prevent whole system from broadcast storm so that make the data transfer more safe. This general network switch and PoE network switch.can meet customers general demands. PoE network switch with PoE function, designed for high-definition network cameras internet access. It provides 24 100Mbps PoE Ethernet switches, complies with IEEE802.3af/at standards, and also simplifies wiring, avoids the troublesome of installing power socket for powered device
24 x 100Mbps Ethernet ports,
4 x 1000Mbps combo up-link port (2x10/100/1000Mbps port or 2x1000Base-X SFP optical fiber port)
Support End-Span method
IEEE802.3 af/at Standards,
30W Power Per Port
Up to 100m Reliable Power Supply
Standart IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3z, IEEE802.3af/at
Supports IEEE802.3x full-duplex flow control,
Auto MDI/MDIX
Supports port-base Vlan
Reset/Restart Button
LED display in real-time
Excellent lightning protection up to 4KV
Easy to install and operate on walls or on desktops
Each port can be used as a network port without POE
Works with voltage range 96v-264v
Comes with Rack Mounts
Specification
