Camera
|
|
|
Image Sensor
|
1/1.8" CMOS
|
|
Signal System
|
PAL/NTSC
|
|
Min. Illumination
|
Color: 0.0008Lux@ (F1.6, AGC ON)
|
|
Shutter Time
|
1s to 1/100,000s
|
|
Day & Night
|
IR Cut Filter with Auto Switch
|
|
Optical Zoom
|
44X
|
|
Digital Zoom
|
16X
|
|
Lens
|
|
|
Focal Length
|
6mm~264mm
|
|
Zoom Speed
|
<5s
|
|
Field of View
|
Horizontal filed of view: 61.8° (w)~2.3° (t)
Vertical filed of view:36.3° (w)~1.3° (t)
|
|
Aperture Range
|
F1.6~F5.3
|
|
Focus Control
|
Auto/Manual
|
|
Iris Control
|
Auto
|
|
Close Focus Distance
|
1 m–3 m
|
|
Pan&Tilt
|
|
|
Pan Range
|
360°
|
|
Pan Speed
|
Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 240°/s
|
|
Tilt Range
|
-16°~90° (Default -3°~90°)
|
|
Tilt Speed
|
Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 180°/s
|
|
3D Position
|
Yes
|
|
Preset
|
500
|
|
Preset Accuracy
|
±0.3°
|
|
Cruise
|
16, up to 32 presets per cruise
|
|
Scan
|
8
|
|
Pattern
|
8, each with 600s memory or 1000 orders
|
|
Scheduled Task
|
Preset、Cruise、Scan、Pattern、Alarm output
|
|
Park Action
|
Yes
|
|
Power-off Memory
|
Yes
|
|
Preset Freezing
|
Yes
|
|
Illuminator
|
|
|
IR LEDs
|
8
|
|
IR Distance
|
Up to 250m
|
|
IR Irradiation Angle
|
Adjustable by Zoom
|
|
White LEDs
|
2
|
|
Laser
|
N/A
|
|
Laser Distance
|
N/A
|
|
Compression Standard
|
|
|
Video Compression
|
S+265/H.265/H.264/M-JPEG
|
|
Video Bit Rate
|
32Kbps~16Mbps
|
|
Audio Compression
|
G.711A/G.711U/ADPCM_D/AAC_LC
|
|
Audio Sampling Rate
|
8K～48Kbps
|
|
|
|
|
Max. Resolution
|
5MP (3072x1728)
|
|
Main Stream
|
PAL: 20fps (3072x1728), 25fps (2560x1440, 2304x1296), 50fps (1920x1080, 1280x960, 1280x720)
NTSC: 20fps (3072x1728), 30fps (2560x1440, 2304x1296), 60fps (1920x1080, 1280x960, 1280x720)
|
|
Sub Stream
|
PAL: 25fps (704x576, 704x288, 640x360, 352x288)
NTSC: 30fps (704x480, 704x240, 640x360, 352x240)
|
|
Third Stream
|
PAL: 25fps (704x576, 704x288, 352x288)
NTSC: 30fps (704x480, 704x240, 352x240)
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
True WDR
|
|
Image Stabilization
|
EIS
|
|
Fog
|
Digita
|
|
White Balance
|
Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance
|
|
AGC
|
Yes
|
|
Noise Reduction
|
2D/3D
|
|
ROI
|
7 Dynamic Areas for Both Main and Sub Stream, support 1 auto-tracking ROI
|
|
Picture Overlay
|
Yes
|
|
Privacy Mask
|
Yes
|
|
Smart Defog
|
Yes
|
|
Image Setting
|
Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
|
|
Flip
|
Yes
|
|
OSD
|
16x16, 24x24,32x32, 48x48, 64x64,96x96, adaptable size, Letters such as Week, Date, Time, Total 5 Regions
|
|
Feature
|
|
|
Alarm Trigger
|
Harsh Voice Alarm, Motion Detection, Mask Alarm, Network Disable Alarm, IP Conflict, MAC Conflict Detection
|
|
Video Analytics
|
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Heatmap, Crowd, People Counting, On Duty Detection, Safety Helmet Detection,Video Abnormal, Audio Abnormal
|
|
Early Warning(EW)
|
Yes
|
|
Auto-Tracking
|
Yes
|
|
Face Detection and Analytics
|
|
|
Operating Mode
|
Face capture, intelligent monitoring optional, default intelligent monitoring
|
|
Face Detection Performance
|
Detects up to 16 faces at the same scene
|
|
Face Exposure Brightness
|
Default 35, 1~100 brightness optional
|
|
Min. Face Pixel
|
Default 80, 26~3072optional
|
|
Network
|
|
|
Protocols
|
TCP/HTTP/MULTICAST/UPnP/PPPoE/DDNS/SIP/FTP/NTP/RTSP/ RTMP/SNMP/SMTP/802.1X/QoS/HTTPS/IPV4
|
|
System Compatibility
|
ONVIF (PROFILE S/T), SDK, CGI, P2P
|
|
ANR
|
Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR)
|
|
Remote Connection
|
≤7
|
|
User/Host
|
Up to 32 users. 4 user levels
|
|
Web Version
|
web6
|
|
Interface
|
|
|
Communication Interface
|
1 RJ45 10M/100M self adaptive Ethernet port
|
|
Audio I/O
|
1/1
|
|
Alarm I/O
|
8/2
|
|
Built-In Speaker
|
Yes
|
|
Reset Button
|
Yes
|
|
On-board storage
|
Built-in Micro SD card slot, up to 128 GB
|
|
RS-485
|
Yes
|
|
BNC
|
Yes(Debugging use)
|
|
Wiper
|
Yes
|
|
Electronic Compass
|
N/A
|
|
GPS/BDS
|
N/A
|
|
General
|
|
|
Protection
|
IP66 , TVS 6000V lightning protection, surge protection and voltage transient protection
|
|
Web Client Language
|
16 languages
Simple Chinese/ Traditional Chinese/ English/ Spanish/ Korean/ Italian/ Turkish/ Russian/ Thai/ French/
Polish/ Dutch/ Hebraism/ Farsi/Arabic/ Vietnamese
|
|
Operating Conditions
|
-30°C~70°C (IR OFF), -30°C~40°C (IR ON), 0-95%RH
|
|
Power Supply
|
AC24V±15%
|
|
Power Consumption
|
22W (IR OFF), 43W (IR ON)
|
|
Heater
|
N/A
|
|
Material
|
ADC12
|
|

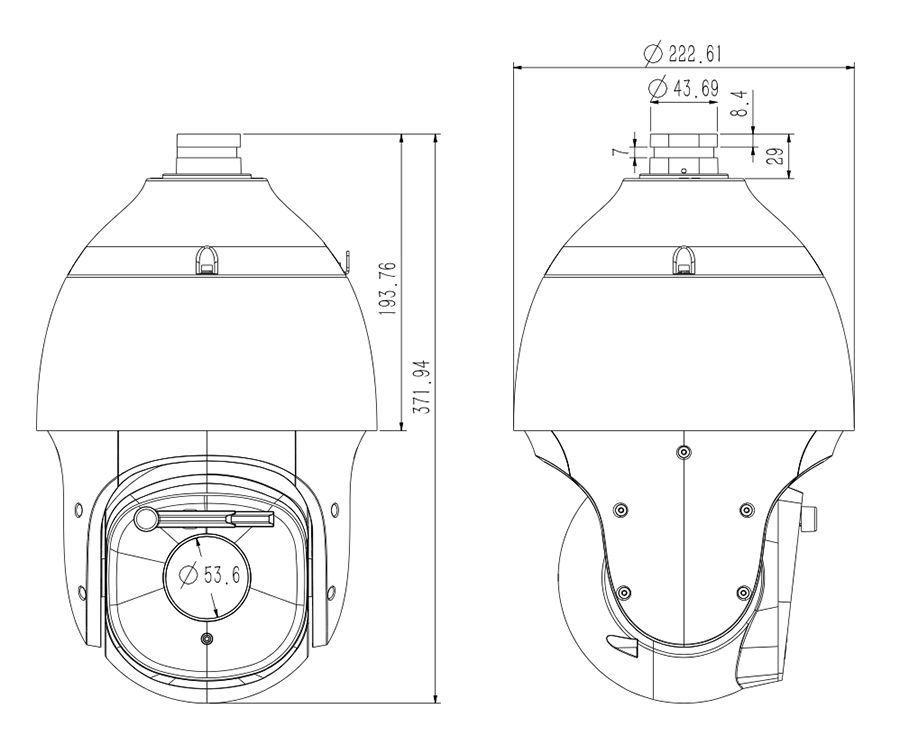

Package/Boundary Dimensions
|
Φ310x500mm (Φ222x372mm)
|
|
Gross/Net Weight
|
9.0kg (5.5kg)
|
