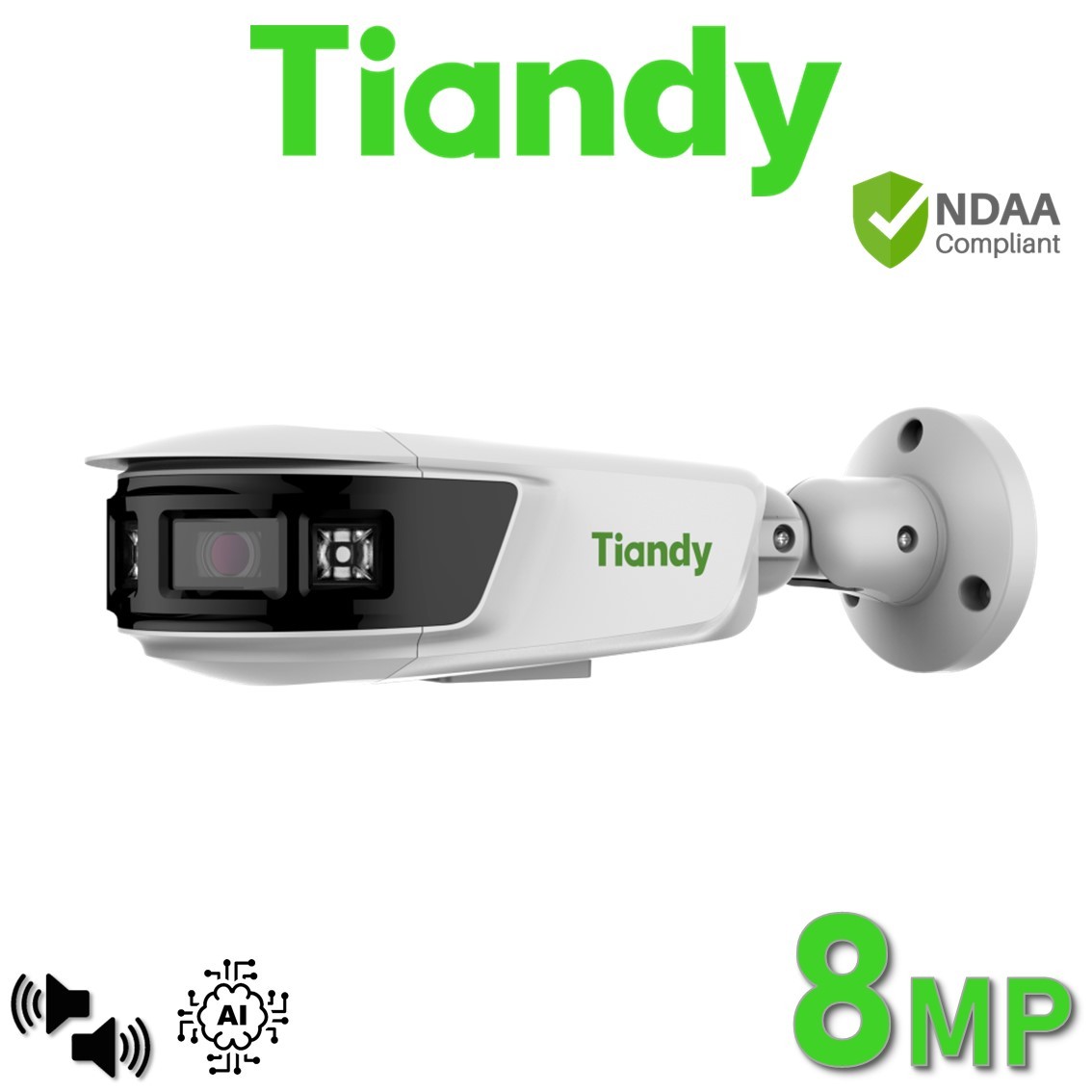

Tiandy TC-C382V W/E/Y/S/H/2.8mm 8MP Fixed Panoramic Camera

Tiandy TC-C382V W/E/Y/S/H/2.8mm 8MP Fixed Panoramic Camera

Cant see the price? Need help or advice on your purchase? Enquire Today!

·Metal+plastic housing


·S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG


·Color:0.0001Lux@(F1.0,AGC ON),B/W:0Lux with IR


·Built-in Mic, Built-in Speaker


·Support microSD/microSDHC/microSDXC card, up to 512 GB


·Support Smart surveillance


·Support Human/Vehicle Classification


·Operating Conditions -40℃~65℃(No turning on the light), Humidity 95% or less (no condensation)


·DC12V±25%,MAX 11.0W, POE 802.3at,MAX 12W


·IP67

Specification

Camera



Image Sensor

1/2.7"CMOS

Min. Illumination

Color:0.0001Lux@(F1.0,AGC ON),B/W:0Lux with IR

Shutter Time

1s~1/100000s

WDR

120dB

S/N

>46dB

Angle Adjustment

0~360°(P); 0~90°(T); 0~360°(R)

Lens



Lens Type

Fixed focal lens

Focal Length

2.8mm

Lens Mount

M12

Aperture Range

F1.0

Field of View

180°(H)±10°; 65°(V)±5°; 191°±10°

DORI Distance

Detect:56m Observe:22m Recognize:11m Identify:5.6m

Illuminator



White LEDs

3

Whitelight Distance

15m

Compression Standard



Video Compression

S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG

Video Bit Rate

32k~16Mbps

Audio Compression

G.711A/G.711U/ADPCM_D/AAC_LC

Audio  Sampling Rate

8kHz/32kHz/48kHz




Max. Resolution

4640×1728@25fps

Main Stream

PAL:25fps(4640×1728, 4096×1520) NTSC:24fps(4640×1728, 4096×1520)

Sub Stream

PAL:25fps(1408×528) NTSC:24fps(1408×528)

BLC

Yes

HLC

Yes

AGC

Yes

3D DNR

Yes

White Balance

Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance

ROI

8 rectangular static areas

OSD

Overlay of additional characters in 5 regions, 2 lines, with a maximum of 127 characters or 42 Chinese characters per region; 16*16/32*32/48*48/64*64/96*96/128*128

Picture Overlay

1*200x200 size BMP 24 color bit image overlay

Privacy Mask

4 black static areas

Defog

Yes

Feature



Alarm Trigger

Motion Detection; Mask Alarm; Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception ; Event Input, Event Output

Linkage Method

send email; trigger sound; trigger warmlight; trigger recording; trigger capture; notify surveillance center

Video Analytics

Human/Vehicle Classification; Tripwire; Perimeter; Video Abnormal; Audio Abnormal

Rules of behavior analyse in 1 scene

8

Early Warning(EW)

Early Warning(EW)

Network



ANR

Yes

Protocols

HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; SSL; 802.1X; QoS; IPv4; IPv6; PPPOE; SSH; Unicast; Multicast; RTCP; ARP; RTP; SRTP; RTSP; FTP; SFTP; NAS

System Compatibility

ONVIF Profile S/T/G/M; CGI; Milestone; RTMP

Remote Connection

≤7

Client

Easy7 Smart Client

Moblie Client

EasyLive Plus

Interface



Communication Interface

1*RJ-45,10/100 Mbps self-adaptive Ethernet port

Audio I/O

1; 1

Alarm I/O

1-ch,TTL input,3mA,3.3VDC; 1-ch,TTL output,30mA,12VDC

Reset Button

Yes

On-board storage

Support microSD/microSDHC/microSDXC card, up to 512 GB

RTC

Yes

General



Web Client Language

19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian

Operating Temperature

-40℃~65℃(No turning on the light)

Operating Humidity

Humidity 95% or less (no condensation)

Storage Temperature

-40℃~65℃

Storage Humidity

Humidity 95% or less (no condensation)

Power Supply

DC12V±25%,MAX 11.0W; POE 802.3at,MAX 12W

Protection

Surge4000V; ESD6000V; IP67

Boundary Dimensions

294(L)116(W)72(H)mm

Package Dimensions

360(L)150(W)170(H)mm

GrossWeight

1.1kg
