Tiandy How To Use Smart IP PTZ (Pan Tilt Zoom) Security CCTV Camera

Moving

Basic debugger –Control automatically

• Standby action: set preset and automatically return to this
  position after PTZ leaves the preset position.
• Time run : refers to the seted time, link your seting action.
  Start a cruise mode in the morning and start a different
  cruise mode in the afternoon.

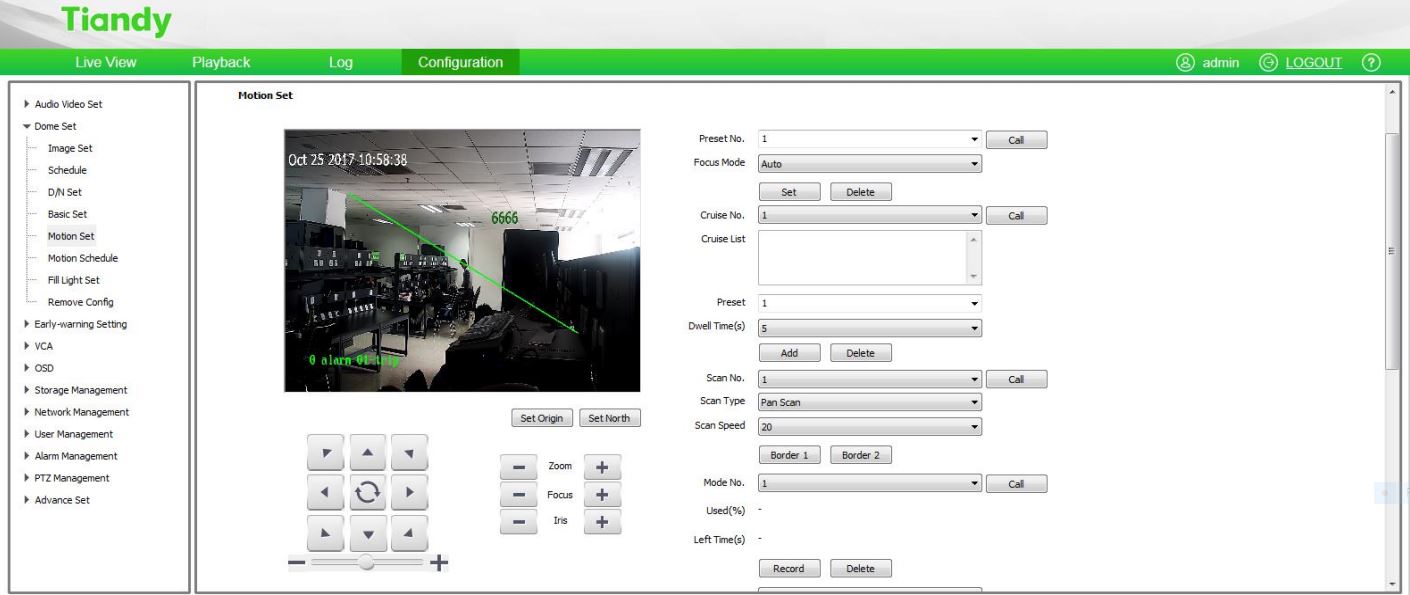

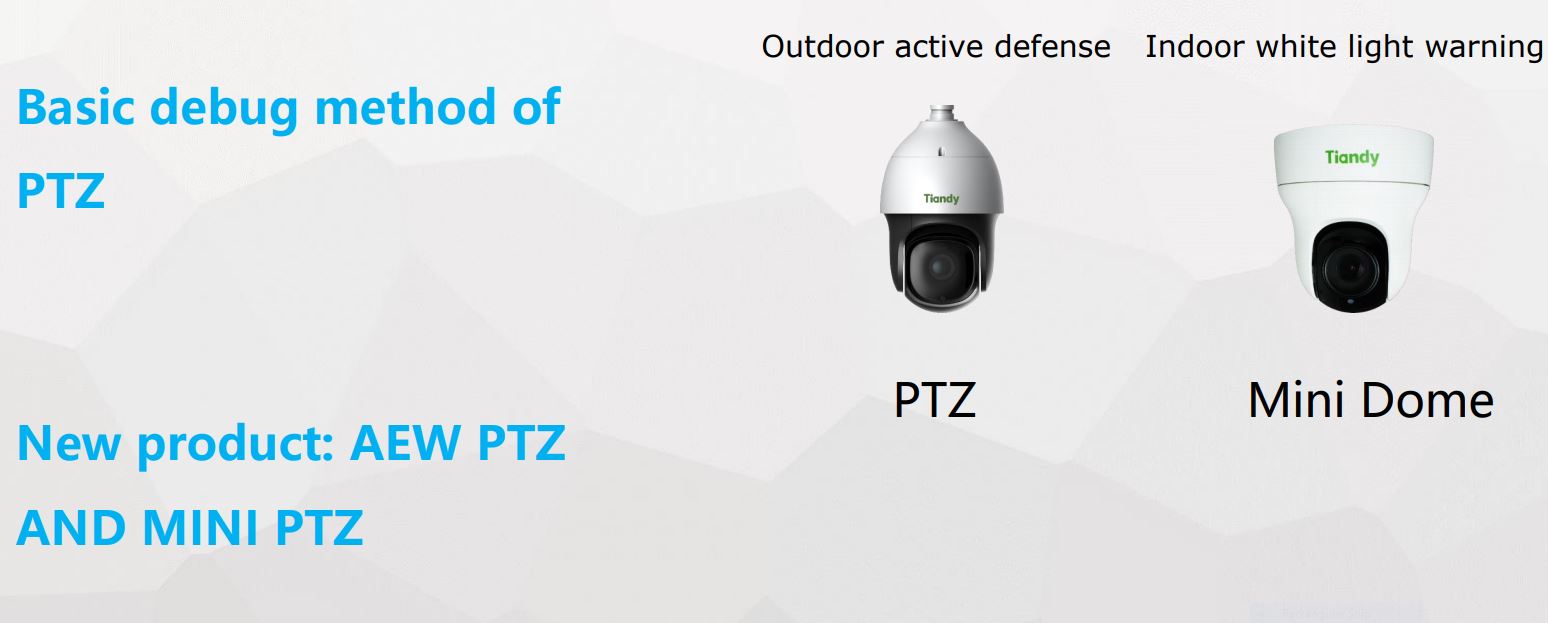

Basic debug method of PTZ

Basic debugging

The auto action preset cruise scan pattern

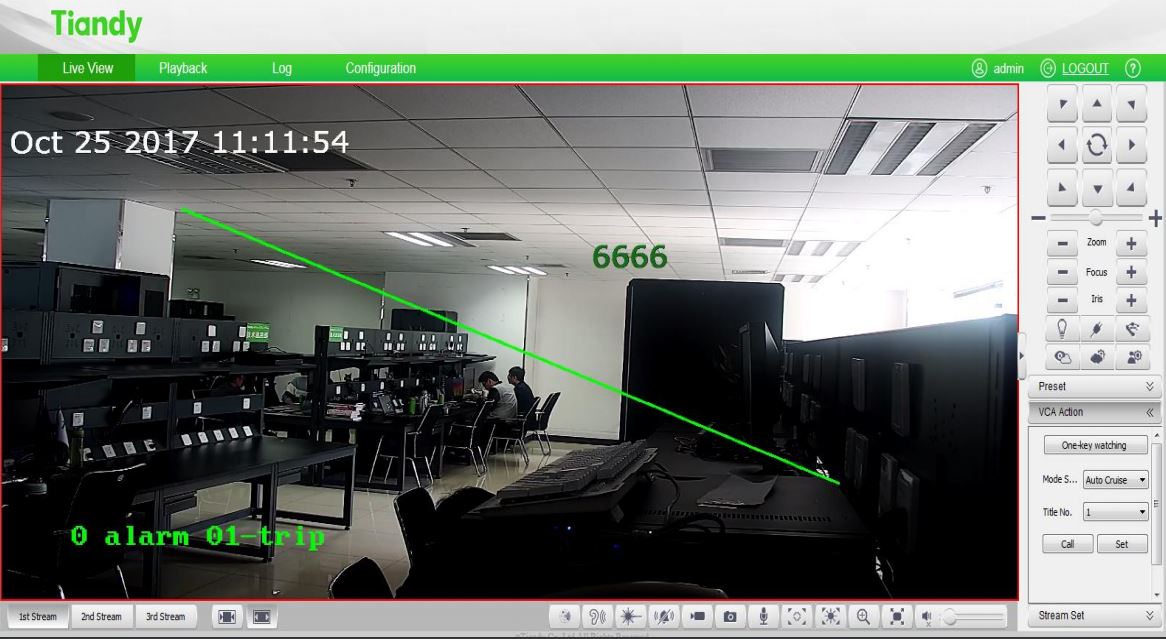

Set standby action – one key watching (preset)

Live View-> one-key keeping watch: record the current position as standby position, and PTZ will automatically return to the position when it has no manual operation for 30 seconds.

AEW Setting

• 5 AEW plan
• Self-defining plan: plan setting ->interlocking linkage -> cruise setting

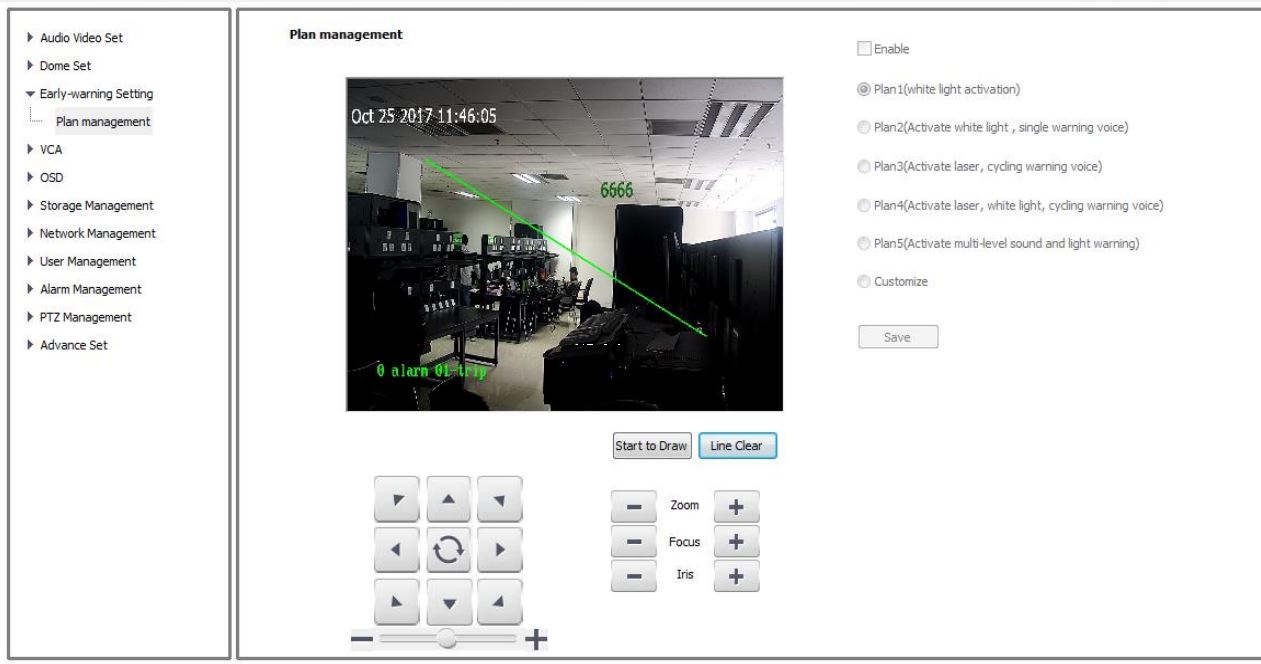

AEW Settings – quick operation, screen capture show as below

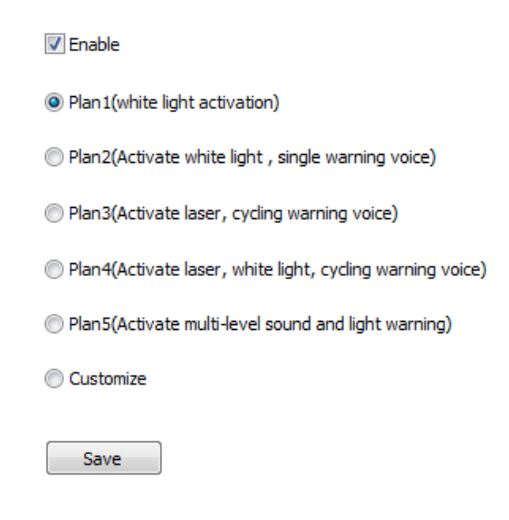

AEW settings – quick operation, three-step operation

Step 1: activate the alert plan

Step 2: select the appropriate plan in the plan list

Step 3: save the Settings and switch to the “preview” page to see video

AEW setting—Plan 5

Plan 5 supports the two kinds of alert mode of illicit and early warning

AEW setting—Custom action

AEW setting – Custom AEW operation procedure

1. Enable the alert plan and select custom mode;
2. Check the rules to be valid, can set more than one rule, enable the cloth defense, set up the time of cloth defense, and click the application;
3. Set linkage type (alarm output, video, snapshot, sound, laser, white light, linkage tracking);
4. Through control way and zooming to adjust the scene, draw the warning area, and click save
5. Click next to enter the cruise list to add the scene

PTZ debug method

Link Auto-tracking

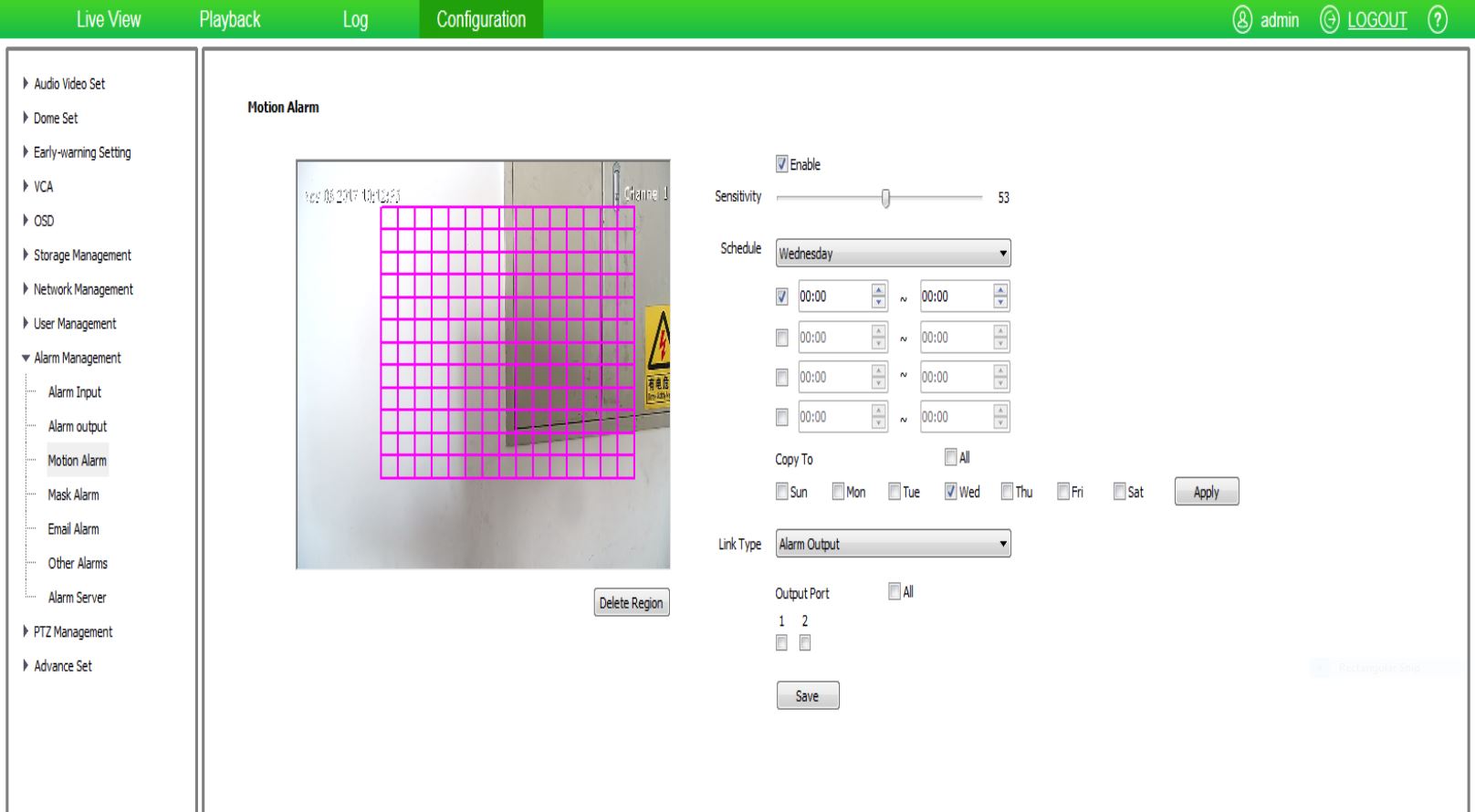

Mini PTZ：How to link white light with AEW at night

Three steps
First: alarm management – moving alarm
Second: enabling – alarming setting
Third: linkage type – linkage double light

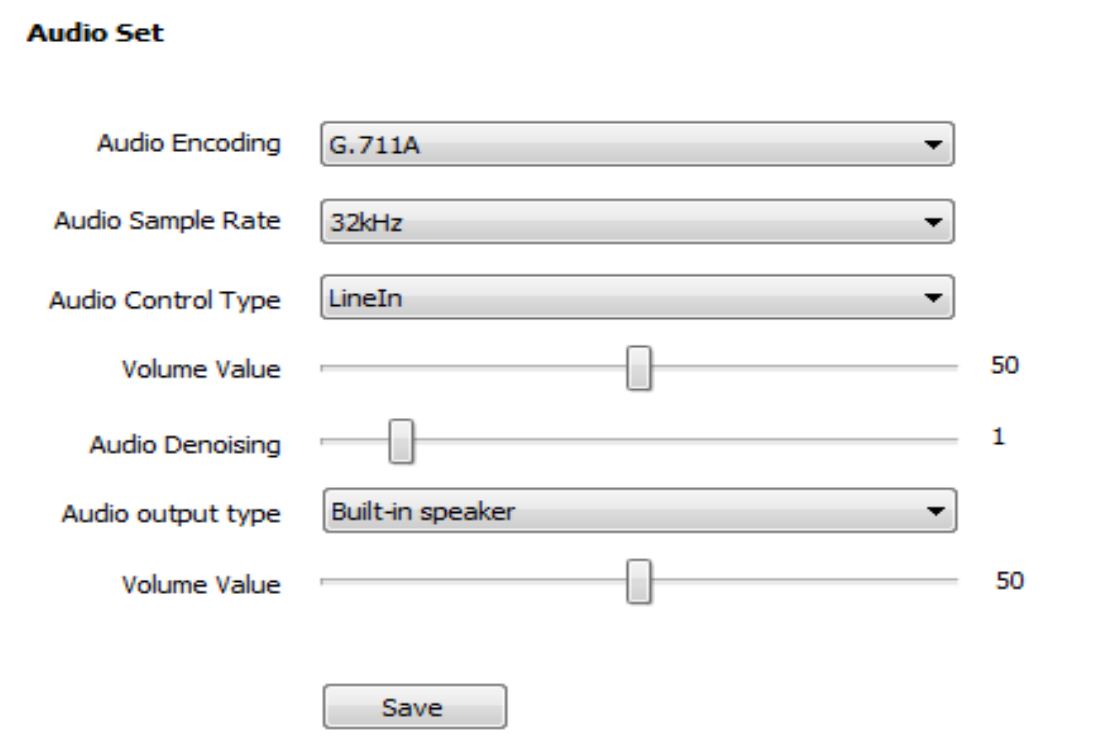

Mini PTZ: built-in MIC, how to set the audio input ?

Audio and video set – audio set – audio control type
Other parameters have no special needs, use default

PTZ debug method–Tips

1. Support full screen for PTZ, focus control, very easy to use; The up/down/left/right ADWSI change +K -J focus -/L focus +.
2. Support preset position search function.
3. Laser manual switch.
