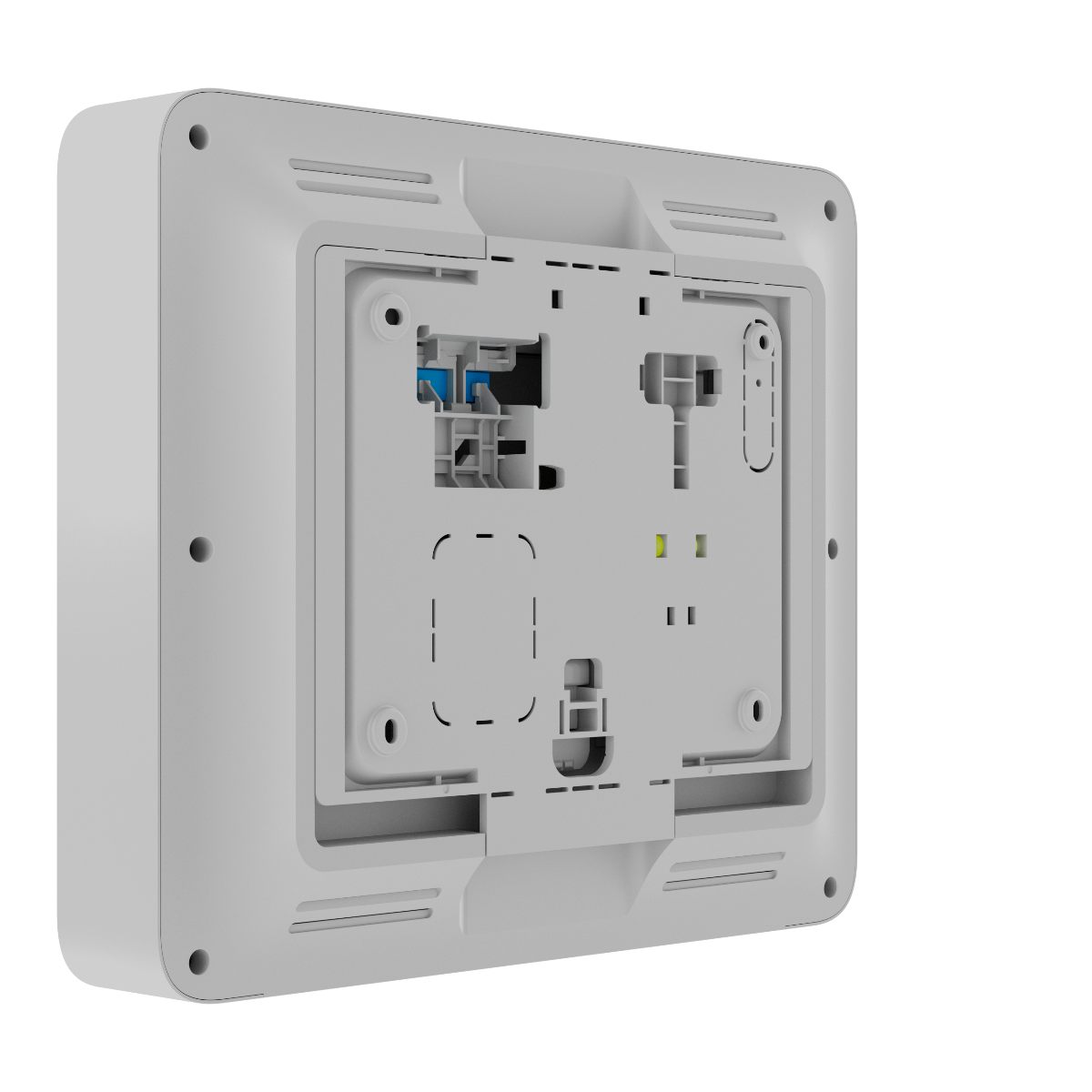

Ajax EN54 Fire Hub Jeweller – Wireless Fire Alarm Control Panel – 125732
The Ajax EN54 Fire Hub Jeweller is a fully wireless, touchscreen control panel designed for commercial-grade fire protection. It serves as the central control and indicating equipment (CIE) for the Ajax EN54-certified fire alarm system, combining advanced communication, intuitive controls, and seamless integration with intrusion, video, and automation devices.
Key Features:
Certified to EN 54-2, EN 54-4, EN 54-21, EN 54-25 & EN 50131 (Grade 2)
10.1” IPS touchscreen with intuitive interface for fire event control
Connects up to 200 wireless devices across 40 fire zones
Multi-channel communication: Ethernet, Wi-Fi & dual SIM (2G/3G/4G)
Jeweller radio protocol with up to 2,000 m wireless range
24h or 72h battery backup with optional EN54 Internal Battery
Built-in buzzer & LED indicators for alarms, faults & disablements
Supports remote control & configuration via Ajax apps
Compatible with MotionCam & photo verification for visual alerts
EN54 ReX support for range extension up to 35 km² with 5 extenders
| Weight | 1.2000 kg |
|---|---|
| Fire & Alarm Range | Ajax EN54 |
| Fire & Alarm Connectivity | Wireless |
| Fire Sensor Type | |
| Weatherproof | Indoor |
| color | White |
