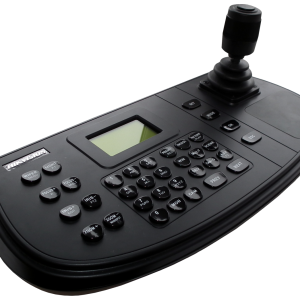

128 x 64 screen
4-axis joystick
Connectable to the Multi-functional Video Center (MVC)
Matrix Access Gateway (VAG)
Video Wall Controller, Decoder, etc.; and shortcut operation of camera/camera groups switch on video wall
Connectable to dome and realize PTZ control and picture capture by joystick operation
Connectable to DVR via network or serial port, and operation of front panel buttons
16 user accounts management: 1 admin and 15 operators
System upgrade and import / export of configuration files by USB-flash disk
Captured pictures(FAT32) can be stored in U-flash disk
Network access and configuration by Web browser support; and up to 1000 devices can be managed in the keyboard operation mode
| System | |
|---|---|
| LCD screen: | 128 x 64 pixel screen |
| Joystick: | 4-axis joystick |
| Control mode: | Network, RS-232, RS-422, RS-485 |

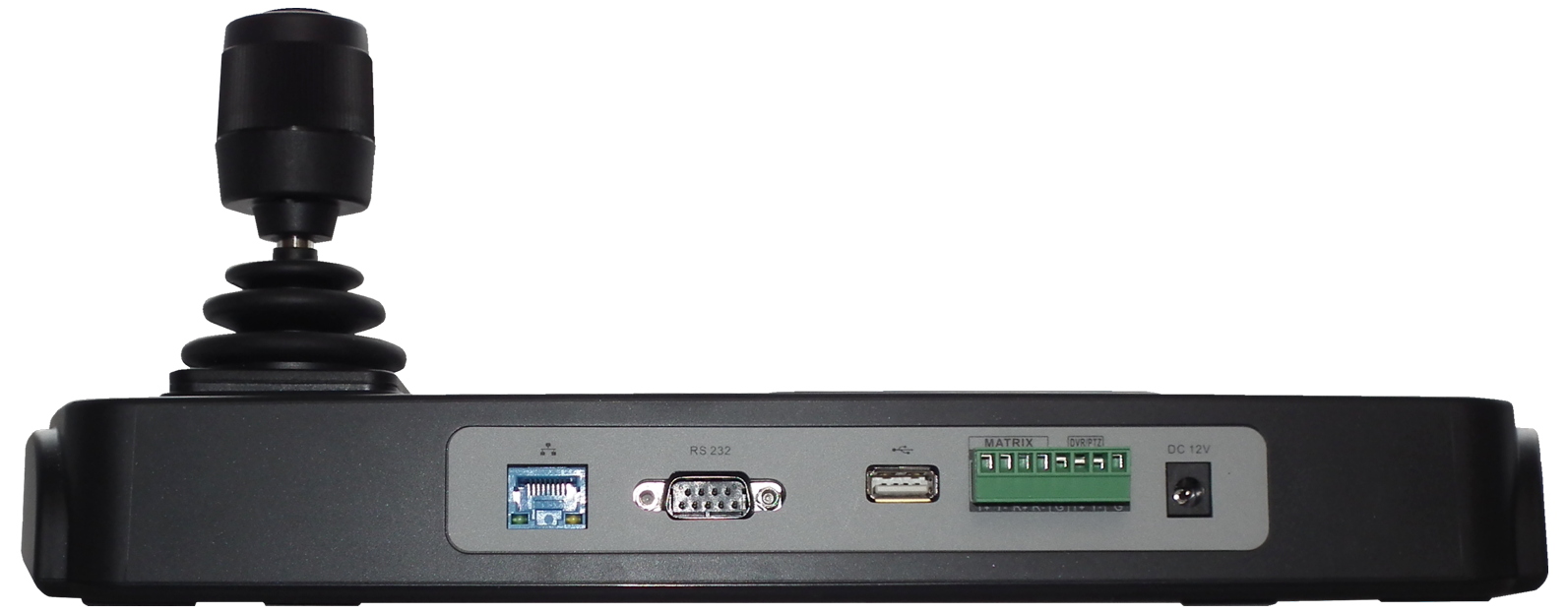

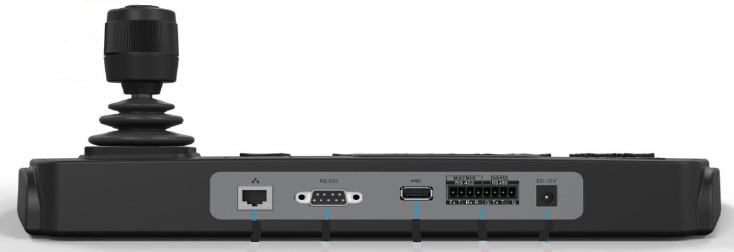

| External Interfaces | |
| Network interface: | 1; 10 M/100 Mbps self-adaptive Ethernet interface |
| Serial interface: | 1 RS-232, 1 RS-422, 1 RS-485 |
| USB interface: | 1 × USB 2.0 |
| Power supply: | 12 VDC |
| General | |
| Consumption: | ≤ 4.5 W |
| Working temperature: | -10 to +55° C (14 to 131° F) |
| Working humidity: | 10% to 90% |
| Dimensions (W × D × H): | 435 × 193 × 110 mm (17.1 × 7.6 × 4.3 inch) |
| Weight: | ≤ 1 kg (2.2 lb) |
| Weight | 2.0000 kg |
|---|---|
| Camera Type | PTZ |
| Night Vision | Infrared |
| color | White |
