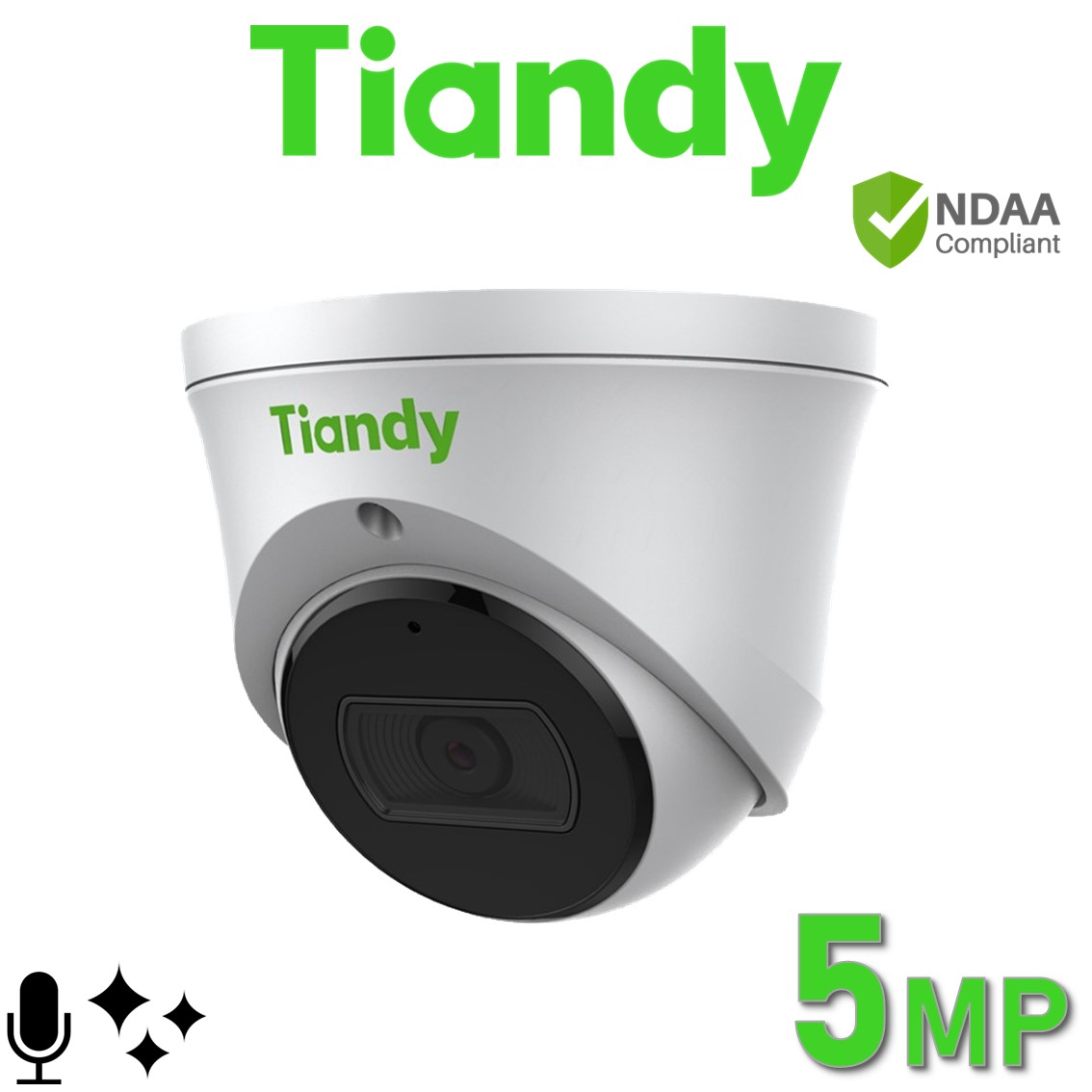

Image Sensor

1/2.8" CMOS

Signal System

PAL/NTSC

Min.   Illumination

Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR

Shutter Time

1s to   1/100,000s

Day & Night

Dual IR Cut Filter with Auto Switch

WDR

120dB

Angle   Adjustment

pan 0~340°,tilt 0~75°,roate 0~360°

Lens

Lens Type

Fixed

Focus

2.8mm

Lens Mount

M12

Aperture

F1.6,Fixed

FOV

Horizontal   field of view:94.7°；Vertical field   of view:71.2°

Illuminator

IR LEDs

2

IR Range

Up to 30m

Wavelength

850nm

White   LEDs/Warmlights

N/A

Compression   Standard

Video   Compression

S+265/H.265/H.264

Video Bit Rate

32Kbps~6Mbps

Audio   Compression

G.711A/G.711U/ADPCM_D

Audio Bit Rate

8K,32K,48Kbps


Max. Resolution

2592x1944

Main Stream

PAL:20fps(2592x1944,2592x1520),25fps(2560x1440,2304x1296,1920x1080,1280x720)

NTSC:20fps(2592x1944,2592x1520),25fps(2560x1440),30fps(2304x1296,1920x1080,1280x720)

Sub Stream

PAL:25fps(704x576,704x288,640x360,352x288)

NTSC:30fps(704x480,704x240,640x360,352x240)

Third Stream

N/A

Image Setting

Saturation,brightness,contrast,sharpness,adjustable   by client software or web browser

Image   Enhancement

BLC/3D DNR/HLC

ROI

N/A

OSD

16x16,32x32,48x48,adaptable   size,Letters Such as Week,Date,Time,Total 1 Regions

Picture Overlay

N/A

Privacy Mask

Yes,4 regions

Smart Defog

Yes

Feature

Alarm Trigger

Motion   Detection,Mask Alarm,IP Address Conflict

Video Analytics

Tripwire,Perimeter

Early   Warning(EW)

N/A

Network

ANR

Yes(Only   Support Tiandy ANR NVR)

Protocols

HTTP,TCP/IP,ICMP,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,UPnP,UDP

System   Compatibility

ONVIF(PROFILE   S/T/G),SDK,CGI,Milestone,P2P(Mutually exclusive with Profile G)

Remote   Connection

2

Client

Easy7,EasyLive

Web Version

Web6

Interface

Communication   Interface

1 RJ45 10M/   100M self adaptive Ethernet port

Audio I/O

Mic in

Alarm I/O

N/A

Speaker

N/A

Reset Button

Yes

On-board   storage

Built-in   MicroSD card slot,up to 512 GB

General

Web Client   Language

17 languages
  English,Russian,Spanish,Korean,Italian,Turkish,Simple Chinese,Traditional   Chinese,Thai,French,Polish,Dutch,Hebraism,Arabic,Vietnamese,German,Ukrainian

Operating   Conditions

-35℃～60℃,0～95% RH

Power Supply

DC 12V±25%,PoE(802.3af)

Power   Consumption

MAX:6W(12V) MAX:8W(PoE)

Protection

IP67

Heater

N/A

Dimensions

116.6  83.7mm(    4.59  3.30inch)

GrossWeight

Metal+Plastic:0.51Kg(1.12lb) Metal:0.64Kg(1.41lb)

NetWeight

Metal+Plastic:0.34Kg(0.75lb) Metal:0.47Kg(1.03lb)
