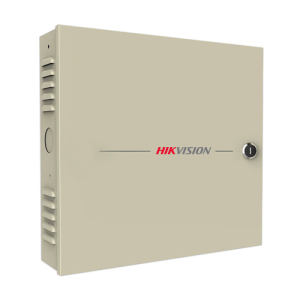

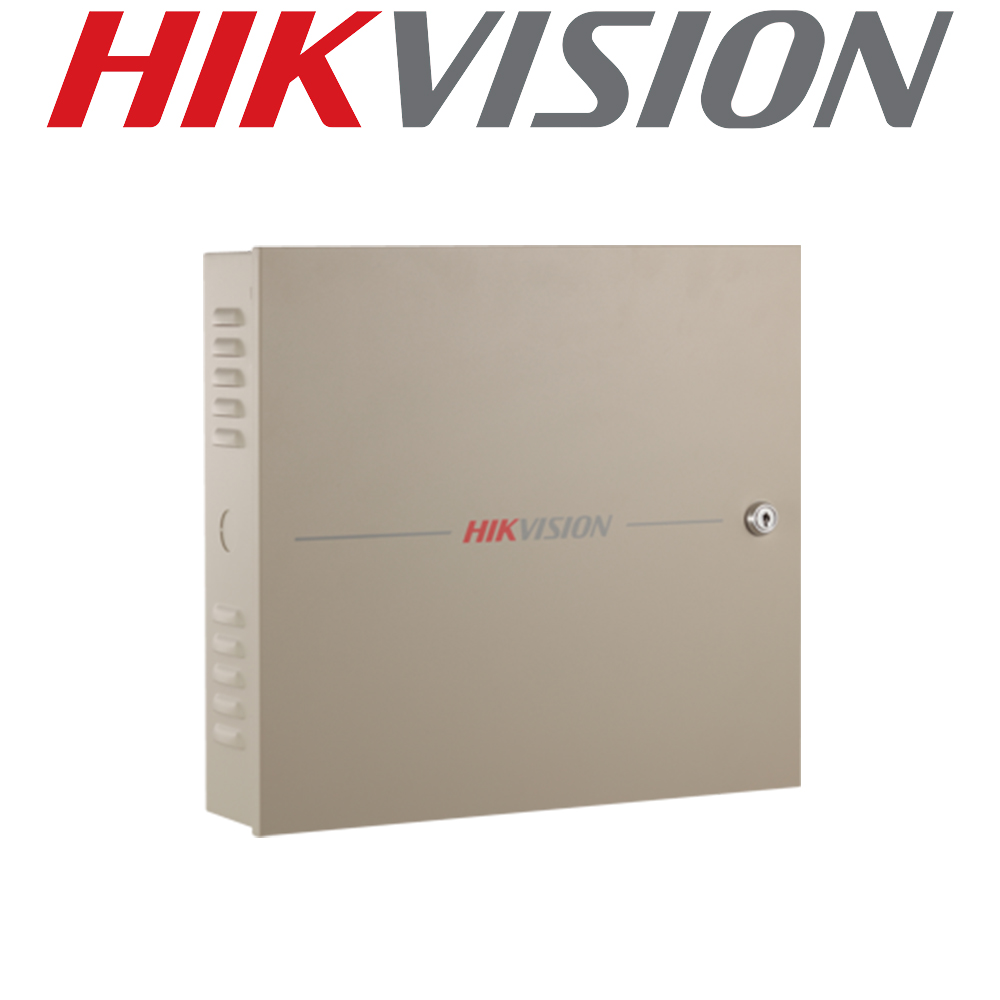

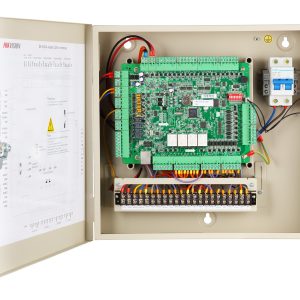

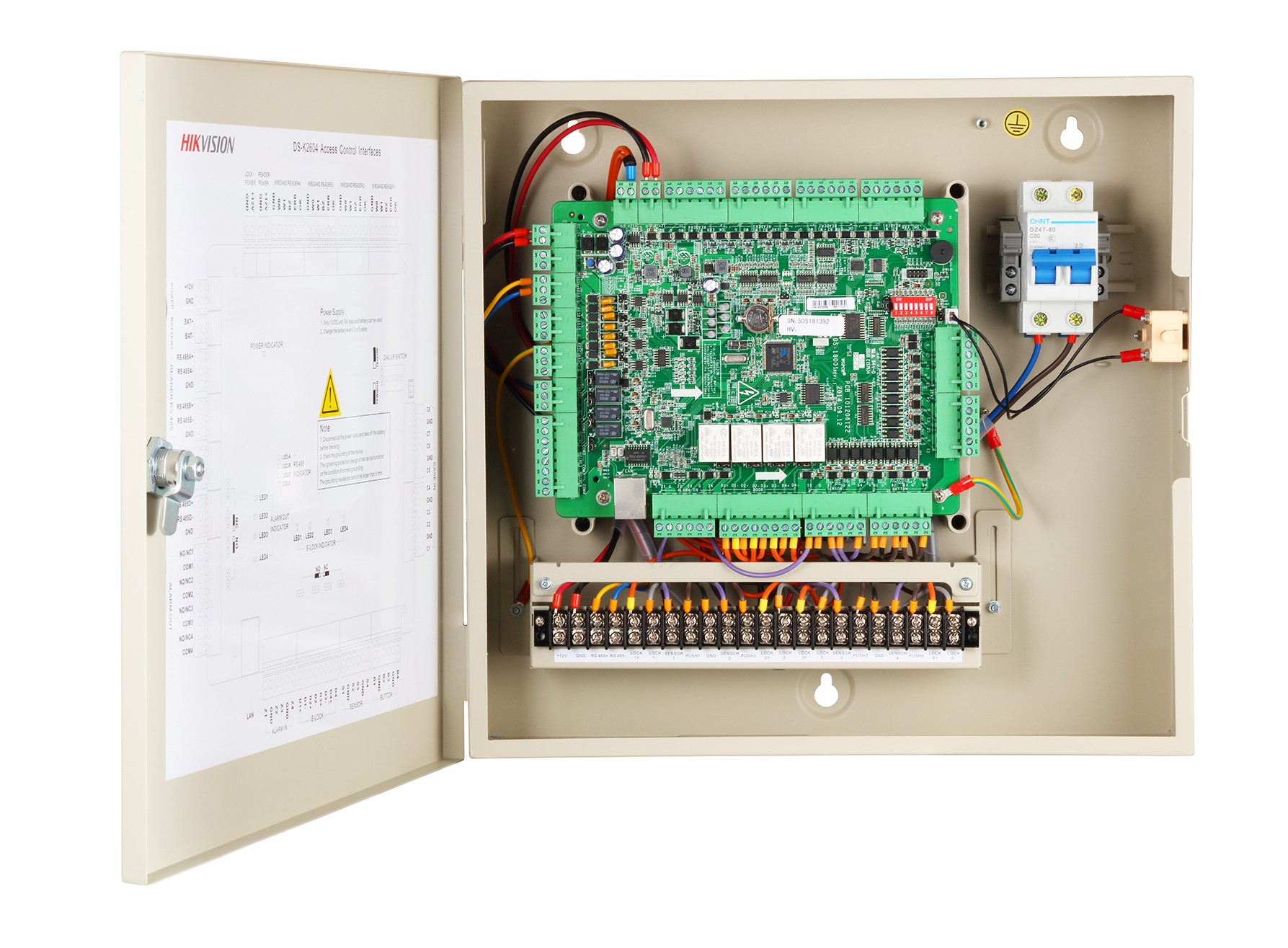

DS-K2600 series access controller is designed with latest structure with TCP/IP and RS485 communication interface. The communication data is encrypted to improve the security of system. The controller also supports offline operation and is designed with tamper-proof switch.
• 32-bit high-speed processor
• TCP/IP network communication, with self-adaptive network interface. The communication data is encrypted to ensure information security
• The recognition and storage of card number with maximum 20 digits
• Massive storage with 100,000 (can be expended to 200,000) cards information and 300,000 (can be expended to 600,000) access control events
• Supports multi-door interlocking function (DS-K2602, and DS-K2604), anti-passback function, multi-card function, first card function, super card and super password function
• Online upgrade function and online remote control of the doors
• Supports alarm event upload (including tamper-proof alarm, unsecured door alarm, forced entry alarm, delayed door alarm, duress card and code alarm, blacklist alarm and alarm for invalid card swiping attempts alarm)
• Short circuit attempts alarm and open circuit attempts alarm
• Supports zone alarm input
• Supports RS485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface
• Supports various card types such as normal/ disabled/ blacklist/ patrol/ guest/ duress/ super card, etc.
• Various indicators to show different device status
• Supports time synchronization via NTP, manual or automatic method
• Supports standby battery
• Watchdog for device running status detection
• Data can be permanently saved when the access controller is powered off
| System Parameters | |
|---|---|
| Storage: | cards information: 100,000 (200,000 expandable) access control events : 300,000 (600,000 expandable) |
| Capacity: | 16M |
| Processor: | 32-bit |
| Device Interfaces | |
|---|---|
| Output Interface: | Door Switch Relay×4, Alarm Relay×4 |
| Uplink Communication Interface: | TCP/IP Network Interface and RS-485 Interface |
| Input Interface: | Alarm Input×4, Door Magnetic×4, Door Switch×4, Case Input×8, Tamper-proof ×1 |
| Downlink Communication Interface: | RS-485 and Wiegand (w26/w34) |
| Accessible Card Reader: | 8 Card Readers (RS485 Interface) and 4 Card Readers (Wiegand Interface) Connectable |
| General | |
|---|---|
| Working Voltage: | DC 12V/1A |
| Power Dissipation (with Load): | ≤100W |
| LED Indicator: | Power Supply Status, Communication Status, Working Status |
| Certification: | CE, FCC |
| Working Humidity: | 10% to 90% (Non-Condensing) |
| Working Temperature : | -20°C to +65°C (-4°F to +149°F) |
| Dimensions (L×W×H): | 370x345x90mm (14.6x13.6x3.5") |
| Weight | 2.0000 kg |
|---|---|
| Doors Supported | 2 Door |
| Mounting Type | Surface |
