ERTECH Fever Detection Face Recognition Temperature Scanning IP System Access Terminal

SKU: ER-TFT7203

Original price was: £832.50.Current price is: £665.83.

48 people are viewing this product right now

Get It Today

Pickup: Belvedere, London
Shipping: 24-48Hrs
Price Match: Found it Cheaper? We'll Beat It!
Multi-Buy: Discounts up to 30%
Call us: 020 8804 6680

In stock

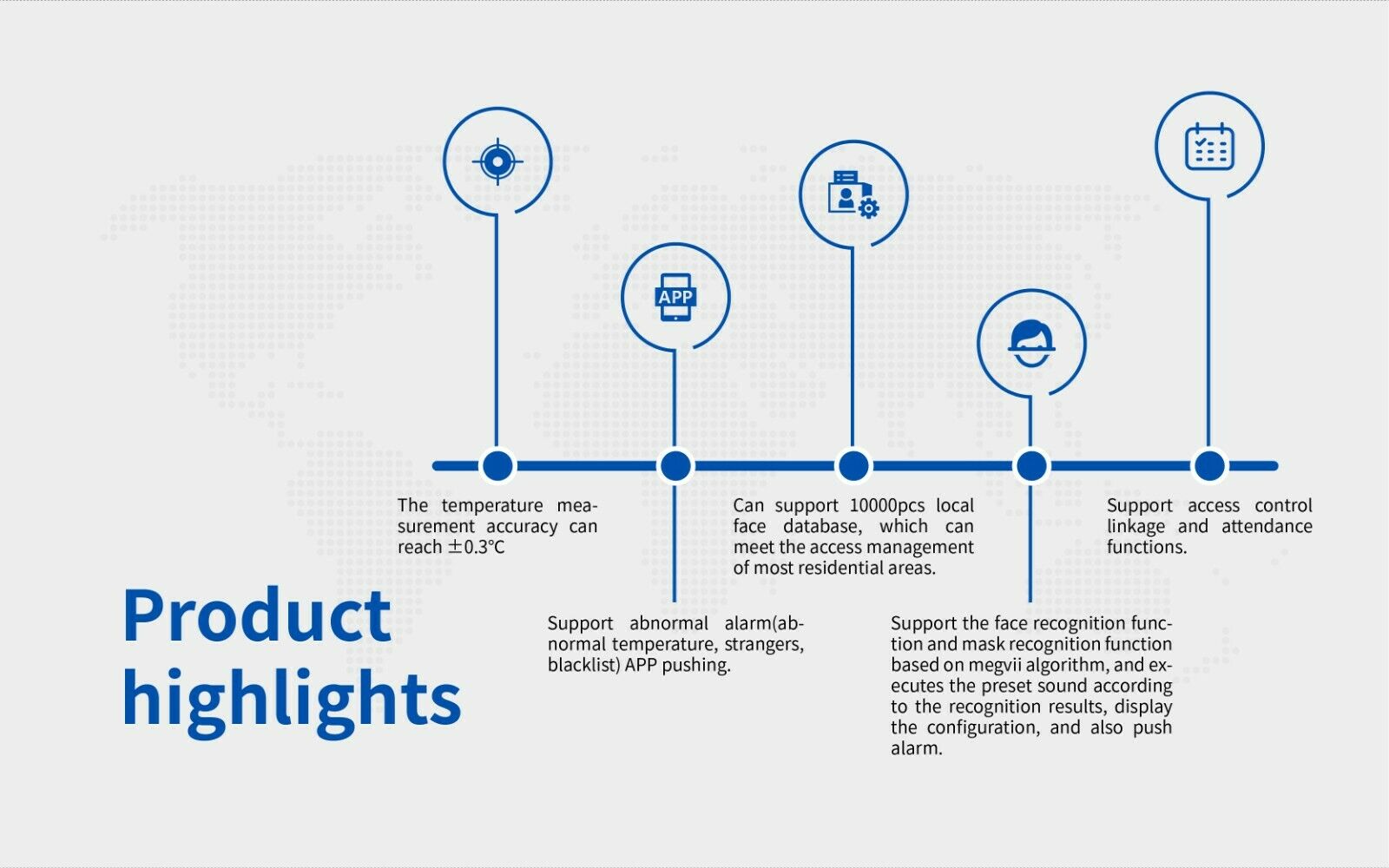

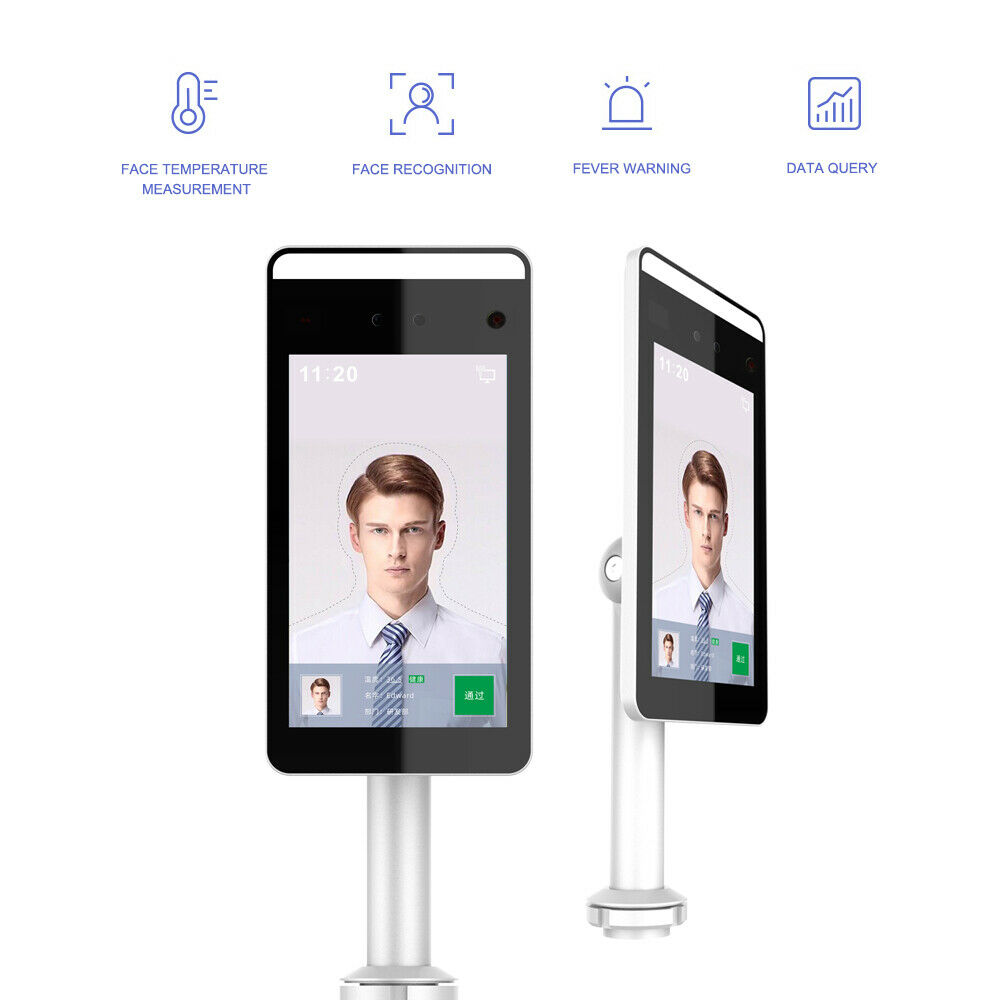

Key Features:
Fast Face Recognition & Big Face Database:
High precision thermal temperature collector, non – contact automatic temperature detection, accurate and efficient.
Monocular liveness detection, face recognition distance of 0.3-1 meters (0.5m is the best), photos / video false-proof.
Fast face recognition speed which is less than 500 ms, support 10000 face comparison database.
Automatically register, record people information include name, ID number & temperature data, avoid manual operation, improve efficiency and reduce missing information

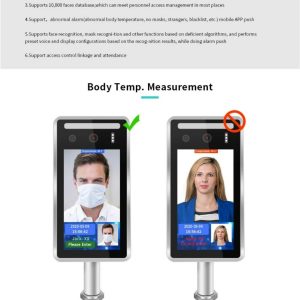

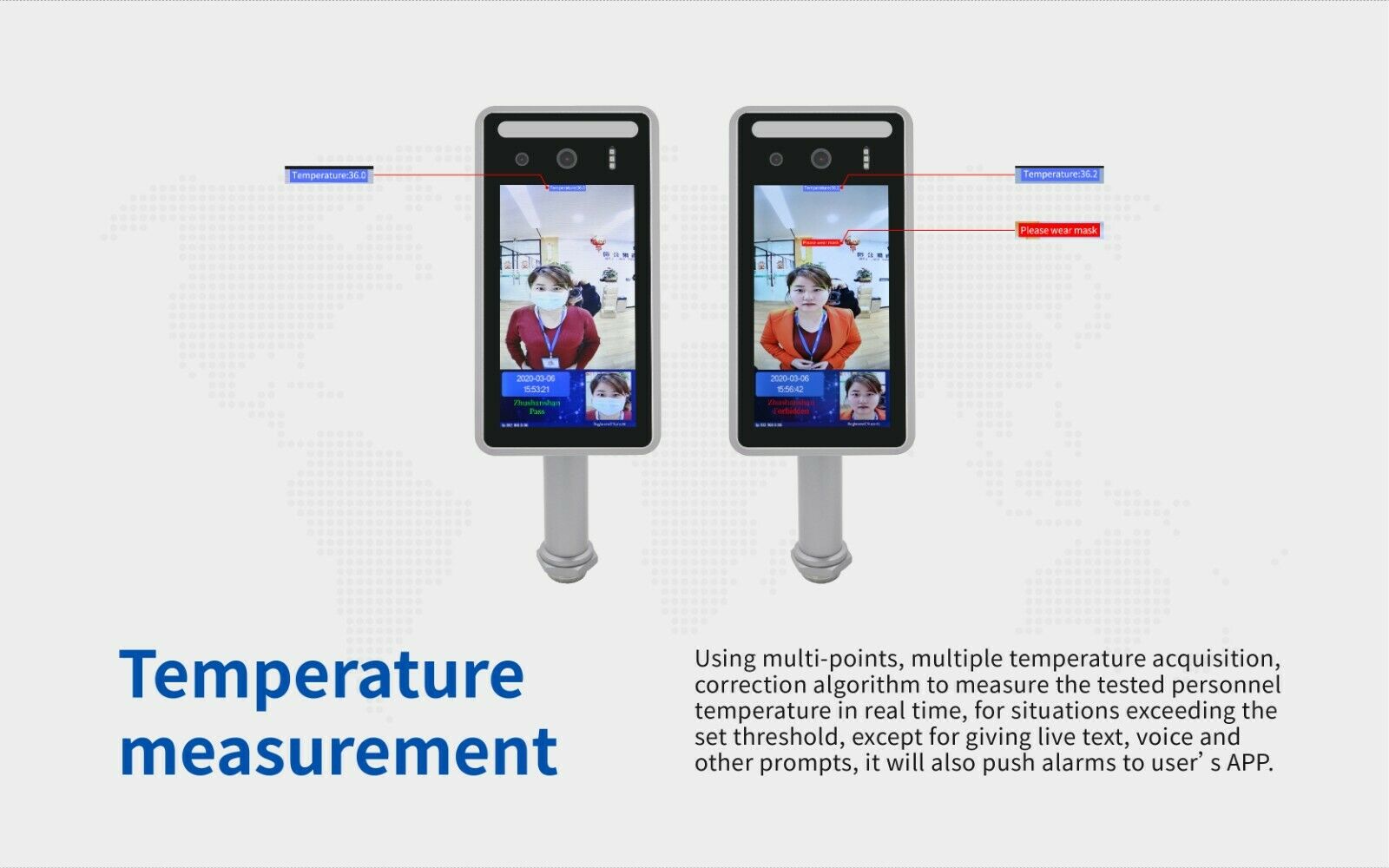

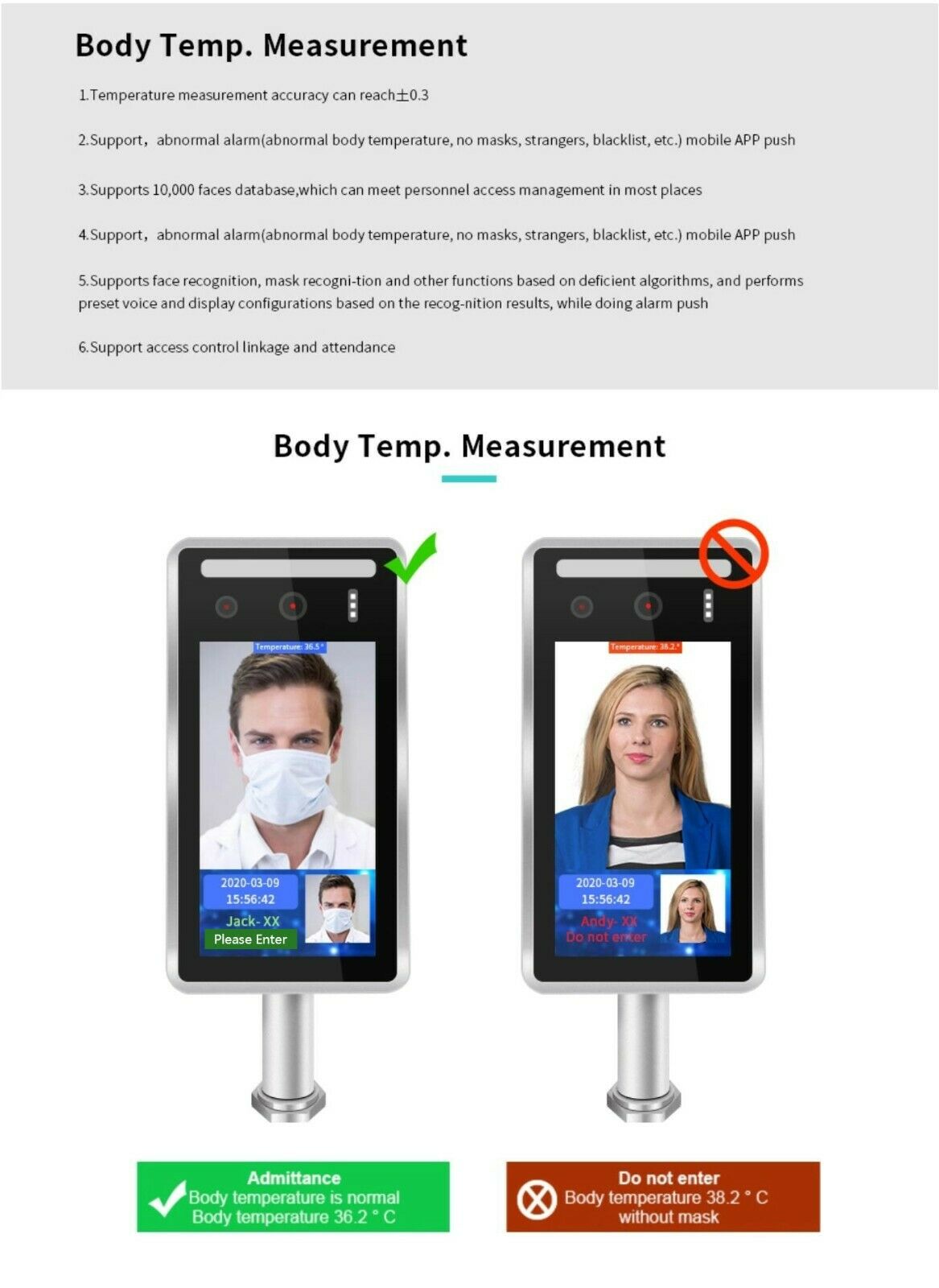

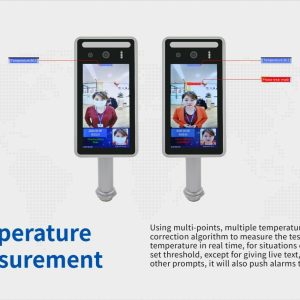

People Forehead Temperature Measurement
​Thermal temperature sensor: Heimann sensor HPTA 32x32d thermal imaging sensor
Temperature measurement range:30-45(℃),Precision can reach ± 0.3℃
Real-time output of authentication results (pass or not pass) and voice broadcast (multi-languages)
Abnormal temperature alarm: voice alarm ; mobile phone push ; trigger alarm output
High fever alarm to prevent entry, and instant alarm message push to your phone

Mask Detect:
Automatic identification of people not wearing masks and real-time warning.
This function can be disabled in settings if you do not want to use.

P2P Phone APP Remote Access & View
Support P2P iPhone & Android Smartphone remote access & live view via APP
Phone APP name: P6SLite

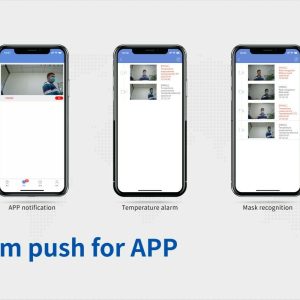

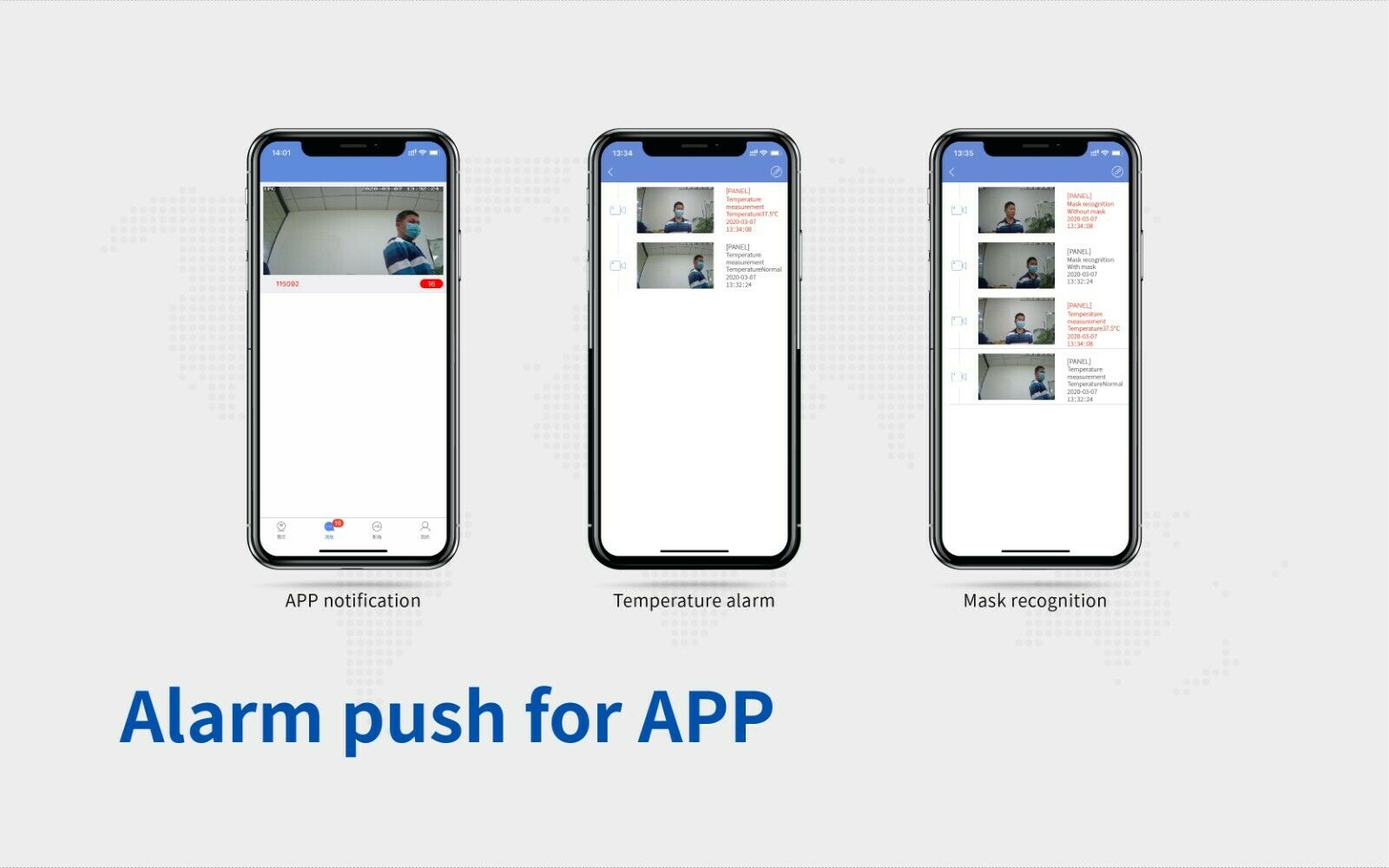

High Fever Alarm Message Push to Smart phone
When the camera detects a person with high temperature and fever, the camera will actively grab a picture (with message: Person Name + Abnormal temperature data) and send it to the mobile phone, so that the management personnel can take timely action.

Face database Management
You can add/delete/query faces in database, you can add sigle face one by one or in batch.
Faces recognition rules in unbind, white list or black list mode.
All the identify records can be backup into PC in Excel files.

Day & Night
Camera equipped with white LED light, which will keep turnning on at night time, it can be used both day and night 24 hours,even in darkness.

HTTP protocol & SDK available
We can provide HTTP protocol and SDK document for your second-development, you can integrate this device into your own system, such as door access control and other devices.
Door Access controlled by three modes: Face Recognition , Temperature , Temperature & Face.

Time Attendance Record
Camera can record all the face recognition records & temperature information and export in Excel file, easy to manage your company staff attendance.

Voice Talk
Camera built-in speaker, you can talk from your mobile phone APP to camera
PS: camera can not talk back to phone.

Full HD Camera 1080P H.265
Camera built-in wide view lens to provide H.265 1080P (1920*1080) high resolution image.

Local Snapshot & Record
You can capture snapshot or record into your local computer.

CPU & Sensor
Hisilicon 3516CV500 series high-performance CPU and SONY HD IMX327/2MP image sensor

Web Menu & Voice Broadcast (Menu & Voice Language can be selected)
Supports English , Russian , Spanish , Italian , Portuguese , Korean , Japanese and Chinese language both VOICE & WEB MENU

Wall Mount and Turnstile
We will include both, a wall bracket and a turnstile bracket for extra versatility

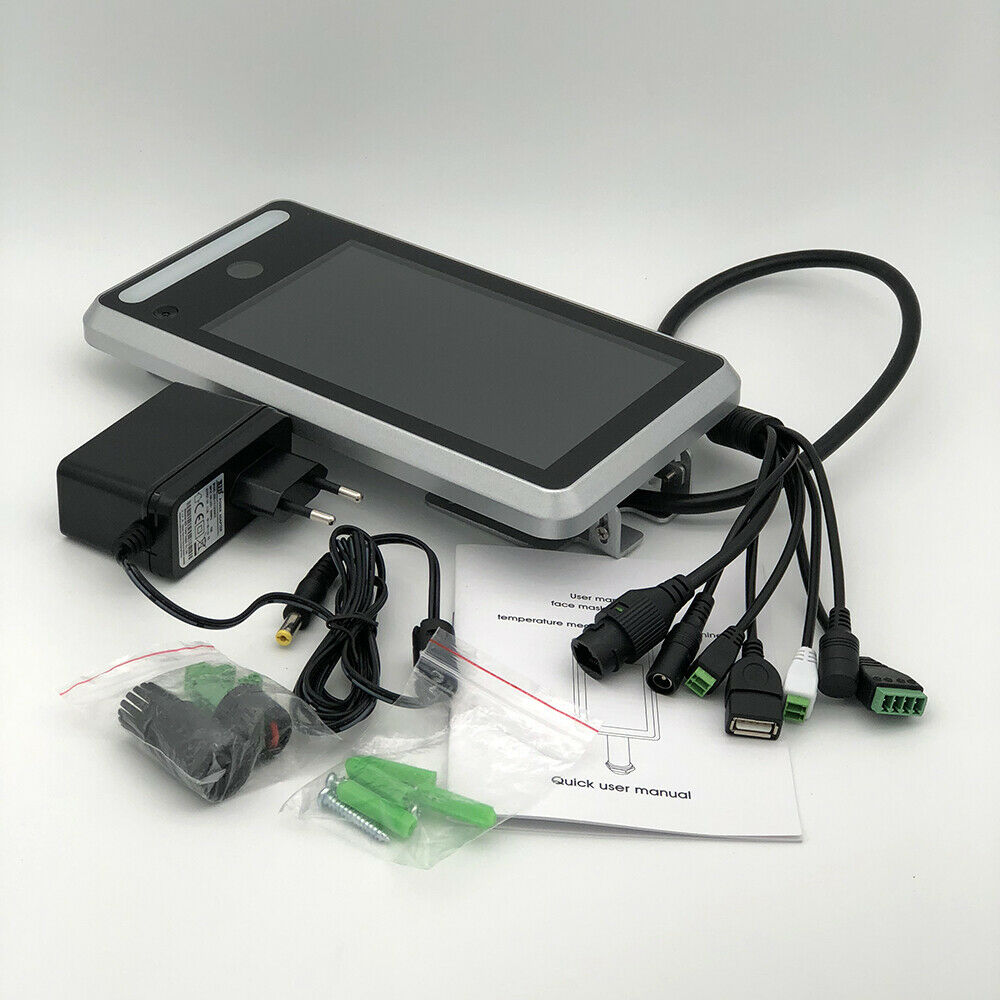

Camera Packing List:
1 x Temperature Detector Terminal
1 x Wall mount & Turnstile Bracket
1 x DC12V2A power adapter
1 x English User Manual

Model ER-TFT7203
System Main Processor Hi3516CV500
Operating System Embedded LINUX
Camera Imagine Sensor 1/2.8"  Sony IMX327
Lens 3.6mm










Video
Compression H.264/H.265
Frame PAL 50HZ/NTSC 60HZ
Resolution 1920*1080/1280*720
Video Stream 128kbps-12288kbps
SNR SNR69db
Minimum illumination Day mode 1lux, night mode 0.01lux
AWB, BLC, AGC, WDR Auto
Exposure Auto, 1/25-1/10000
Video Output Easytool/EasyVMS/APP/7inch LCD display
Motion Detection Support
Screenshot Support
Screen LCD 7 inch LCD display
Audio Coding Standards G.711U
Audio Input Passive MIC/Speaker
Audio Output External 8Ω/MAX 1.5W speaker
Recording Recording Mode Manual recording, Alarming recording, Timing recording
Recording Storage TF card/PC/NVR

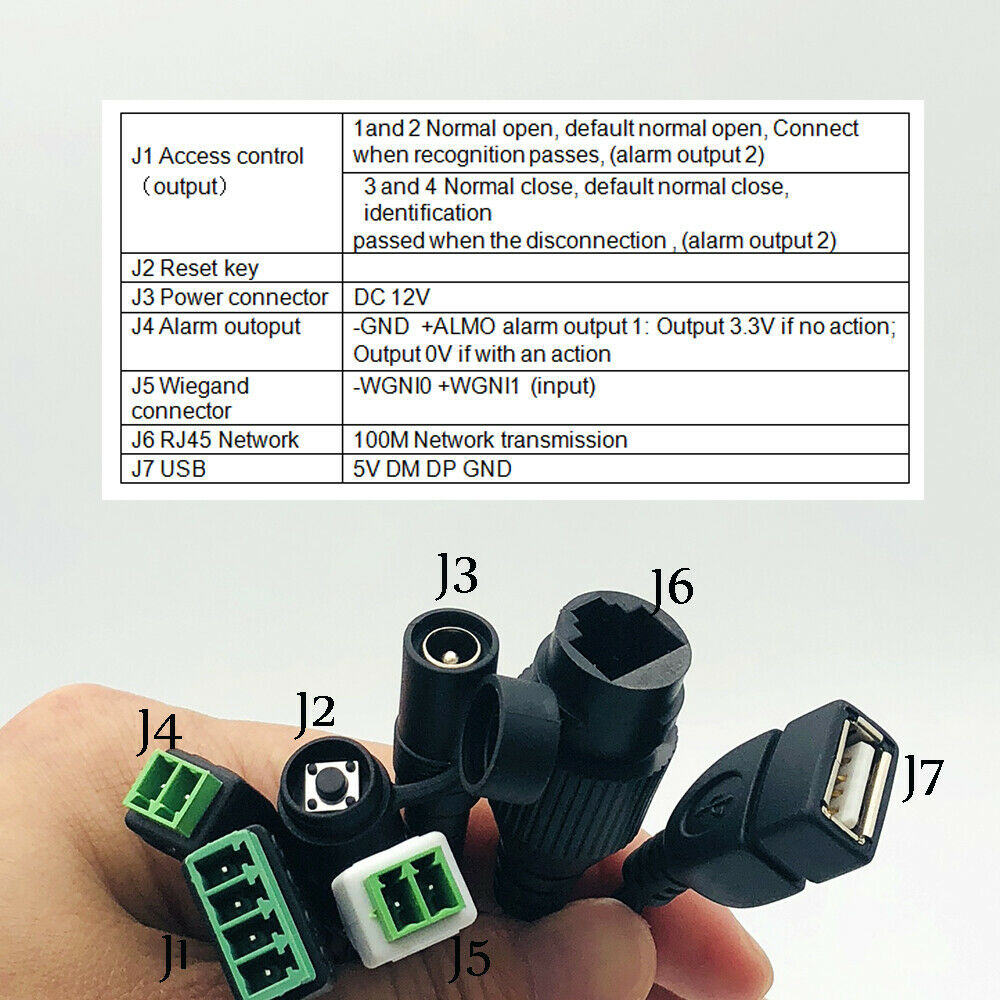

Alarm Alarming Input/Output Support weigand protocol
Alarming Trigger Motion detection, Alarming, Speaker alarming, Alarming recording,Capture,Sending emial
Network Wifi Module/Protocol M8188(ecternal 2.4G antenna)/Support  802.11 b/g/n(full functional pcb ), "-W"model include wifi feature
Network Protocol

HTTP,TCP/IP,IPV4,UPNP,RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP,IP Search

(Support P6S IP camera, DVR, NVS and etc.)

Temperature Measurement Temperature Range 30ºC~45ºC
Detection Distance 0.3M~1.2M
Temperature Accuracy ±0.3ºC
Face Recognition Face Recognition Enable/disable optional
Face Database Max. 10,000
Recognition Time  500ms/face
Stranger Detection Support
Distance 0.3m~1.0m
Parameter Settings Whitelist, Blacklist, Unregistered
Bio-assay Support
General TF Card Storage Max support 128GB(in common use FAT32 format) full function pcb
Power Supply Standard DC-12V(wide voltage 10-16V)
Working current 160mA ±10mA
Working environment -20ºC --- +65ºC
Dimensions(L*W*H) 226.5mm x 120mm x 33.5mm (Excluding bracket)
Weight 1.5kg (2kg including package)
Installation Method Pole mount
Weight 2.3000 kg
color

White
